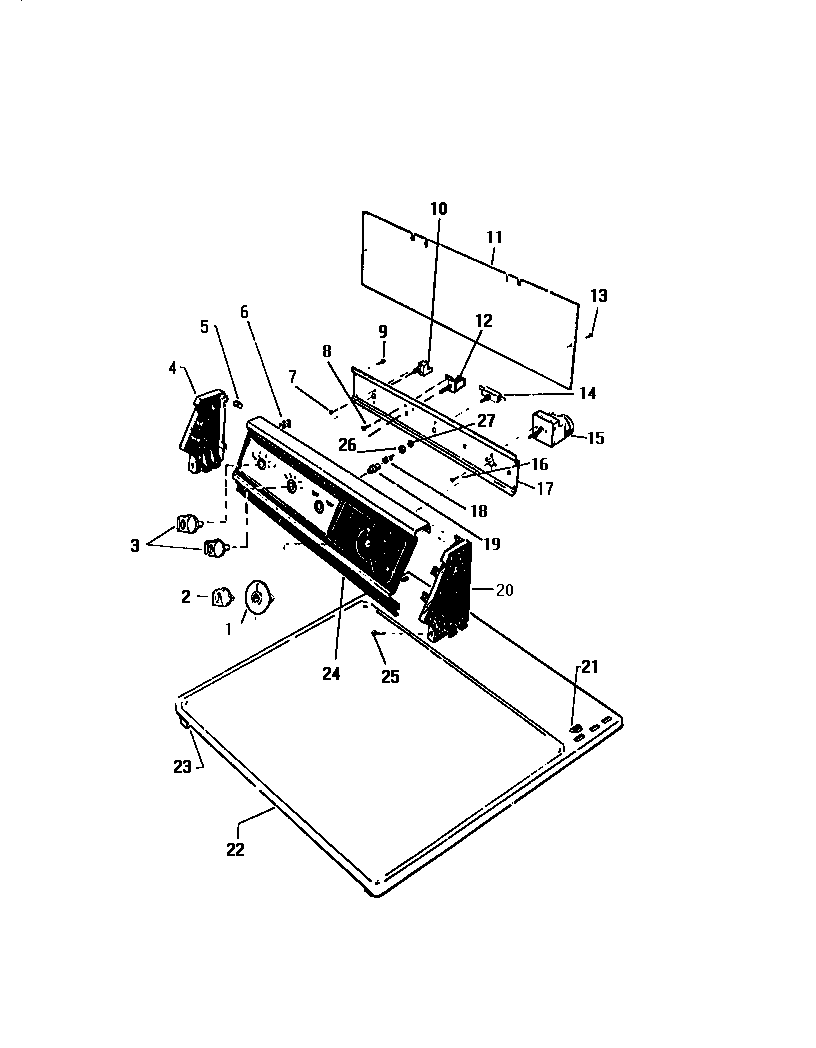

DG400EXD4 02 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
1WCI Q617641
3KNOB TIMER
4WCI Q616731
5SPEEDNUT (8)
6WCI Q504801
7SCREW
9SCREW (4)
10WCI G617633
11WCI Q616741
13SCREW (4)
14START SWITCH
15WCI Q168603
16SCREW (4)
17WCI Q616711
18WCI Q66793
19WCI Q621231
20WCI Q616732
21WCI Q503065
22WCI Q621246
23SPRING CATCH
24WCI Q616841
25WCI Q504533
26WCI Q501450
27WCI Q409004
