DG400EXD4 07 – MOTOR, MISCELLANEOUS

DG400EXD4 07 – MOTOR, MISCELLANEOUS

Written by

in

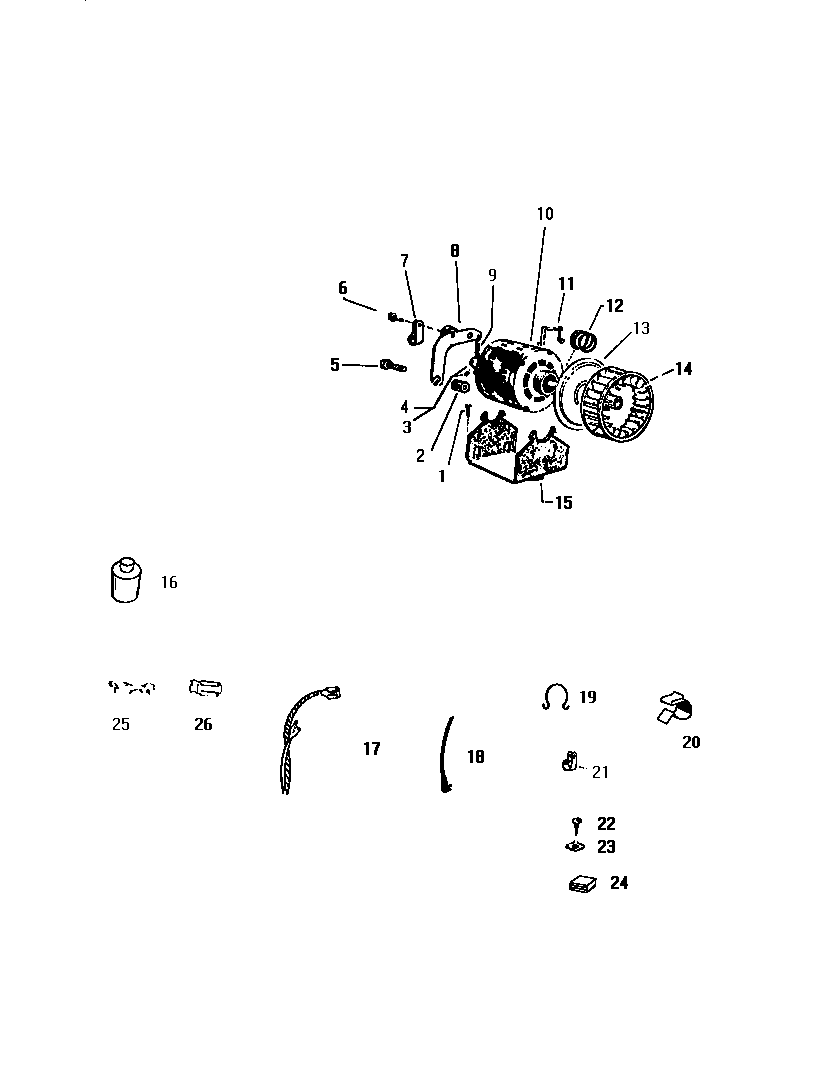

DG400EXD4 07 – MOTOR, MISCELLANEOUS

Products

PositionProduct
*62120WCI 02794
*62121WCI 1443982
1SCREW
2WCI Q600179
3SCREW
4PULLEY (SEE NOTE 1)
5WCI Q433401
6WCI Q414002
7CLAMP
8IDLER PULLEY AND BRACKET
9SPRING
10A(MOTOR PRODUCT NO., W.W.) MOTOR SERVICE REPLACEMENT IS P/N
10DSTART SWITCH FOR Q615921 WW
10FSTART SWITCH FOR Q616391 EMER.
10BMOTOR PRODUCT NO., G.E. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
10MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
10CMOTOR PRODUCT NO. Q616391, EMER. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
10ESTART SWITCH FOR Q616401 GE
11WCI Q62206
12WCI Q94715
13WCI Q94948
14WCI Q615901
15WCI Q94874
16TOUCH-UP PAINT, 1 OUNCE, ALMOND
17WCI Q631801
18CORD, SERVICE
19WCI Q62196
20WCI Q502207
21CLAMP
22WCI Q500665
23WCI Q500411
24WCI Q63137
25ARECEPTACLE, STRAIGHT, 1/4“ BLADE TERMINAL
25RECEPTACLE, STRAIGHT, 3/16“ BLADE TERMINAL
25BRECEPTACLE, STRAIGHT, 5/16“ BLADE TERMINAL
26RECEPTACLE, FLAG, 1/4“ BLADE TERMINAL
