DG400EXF5 03 – FRONT PANEL, DOOR

DG400EXF5 03 – FRONT PANEL, DOOR

Written by

in

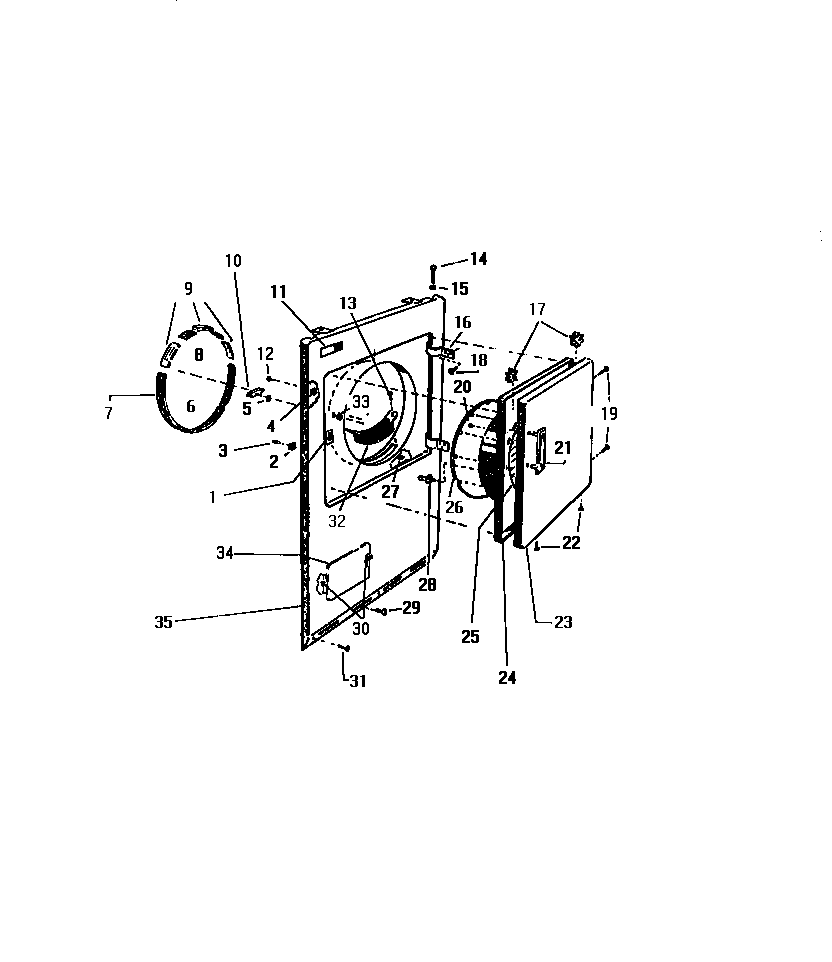

DG400EXF5 03 – FRONT PANEL, DOOR

Products

Position	Product
1	WCI Q504551
2	WCI 1466314
3	WCI Q502482
5	WCI Q409004
6	WCI Q15142
7	WCI Q142888
8	WCI Q15141
9	GUIDE KIT
10	WCI Q622422
11	WCI Q604442
12	SCREW (4)
14	WCI Q55021
15	WCI Q500155
16	WCI Q94651
17	WCI Q631591
18	WCI Q500433
20	WCI Q503952
21	WCI Q151326
22	WCI Q411004
23	OUTER DOOR PANEL, COFFEE
24	INNER DOOR PANEL, COFFEE
25	SHIELD
26	WCI Q167701
27	WCI Q500255
28	WCI Q504552
29	WCI Q405802
30	SUPPORT
31	WCI Q501687
32	WCI Q168541
33	WCI Q501450
34	ACCESS DOOR, COFFEE
35	WCI Q632672
