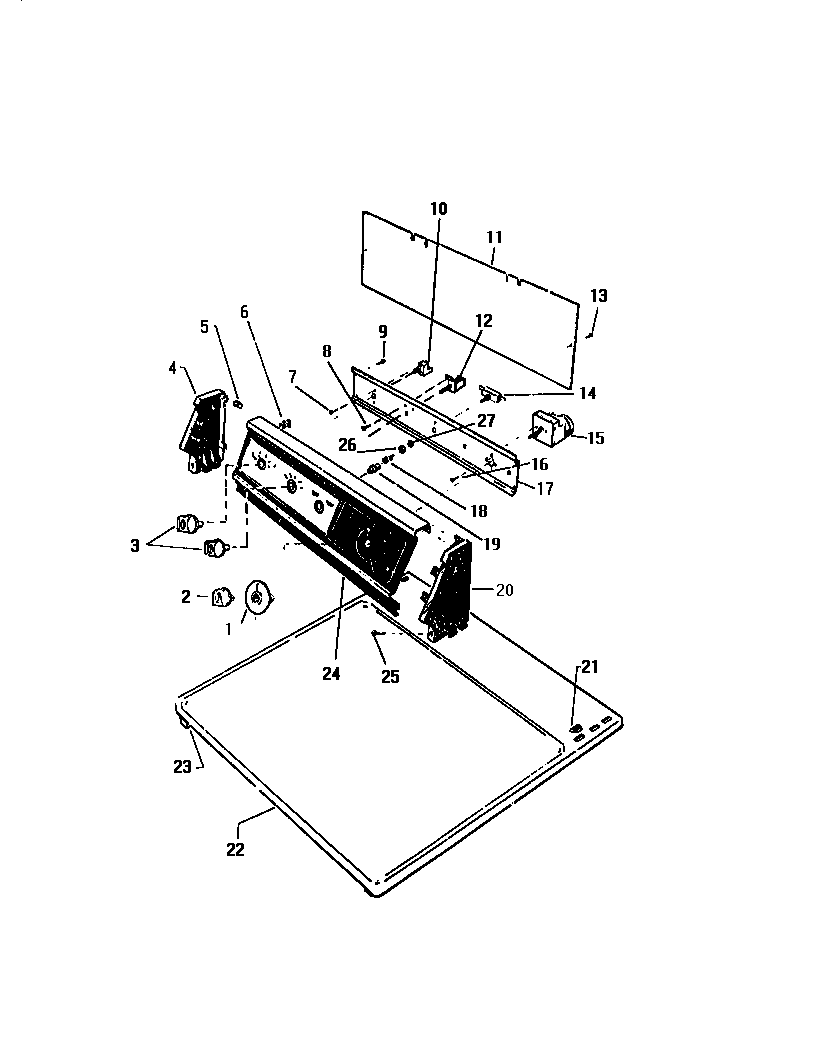

DG400EXH4 02 – CONSOLE, CONTROLS, TOP PANEL

DG400EXH4 02 – CONSOLE, CONTROLS, TOP PANEL

Written by

in

DG400EXH4 02 – CONSOLE, CONTROLS, TOP PANEL

Products

Position	Product
1	WCI Q617641
3	KNOB TIMER
4	WCI Q616731
5	SPEEDNUT (8)
6	WCI Q504801
7	SCREW
9	SCREW (4)
10	WCI G617633
11	WCI Q616741
13	SCREW (4)
14	START SWITCH
15	WCI Q168603
16	SCREW (4)
17	WCI Q616711
18	WCI Q66793
19	WCI Q621231
20	WCI Q616732
21	WCI Q503065
22	WCI Q621248
23	SPRING CATCH
24	WCI Q616841
25	WCI Q504533
26	WCI Q501450
27	WCI Q409004
