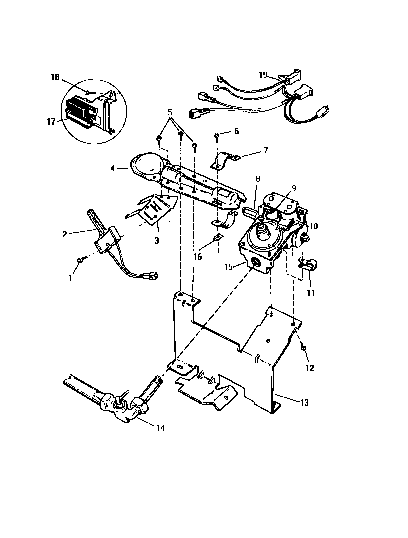

DG400EXH4 06 – GAS VALVE BURNER ASSY. SENSOR

DG400EXH4 06 – GAS VALVE BURNER ASSY. SENSOR

Written by

in

DG400EXH4 06 – GAS VALVE BURNER ASSY. SENSOR

Products

PositionProduct
1WCI Q505556
2IGNITER
3BRACKET IGNITER
4WCI Q125516
5WCI Q414001
6SCREW (4)
7WCI Q116032
8ORIFICES, LP GAS KIT
8ORIFICES, MFD GAS
8ORIFICES, NATURAL GAS
9WCI Q622602
10WCI Q622601
11WCI Q622604
12WCI Q505564
13WCI Q631531
14WCI Q600621
15WCI Q630822
16SPEEDNUT (2)
17SENSOR
18SCREW (4)
19WCI Q631781
