DG400EXH4 07 – MOTOR, MISCELLANEOUS

DG400EXH4 07 – MOTOR, MISCELLANEOUS

Written by

in

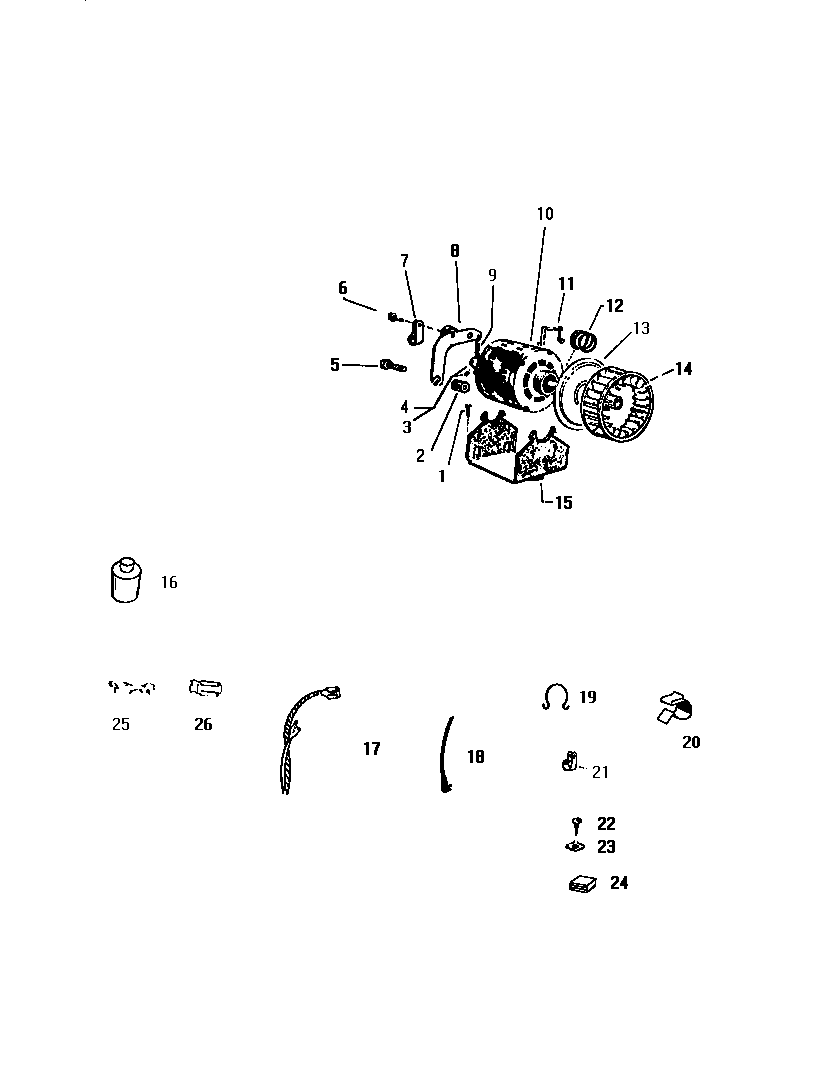

DG400EXH4 07 – MOTOR, MISCELLANEOUS

Products

PositionProduct
*62120WCI 02794
*62121WCI 1443982
1SCREW
2WCI Q600179
3SCREW
4PULLEY (SEE NOTE 1)
5WCI Q433401
6WCI Q414002
7CLAMP
8IDLER PULLEY AND BRACKET
9SPRING
10A(MOTOR PRODUCT NO., W.W.) MOTOR SERVICE REPLACEMENT IS P/N
10DSTART SWITCH FOR Q615921 WW
10FSTART SWITCH FOR Q616391 EMER.
10BMOTOR PRODUCT NO., G.E. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
10MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
10CMOTOR PRODUCT NO. Q616391, EMER. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
10ESTART SWITCH FOR Q616401 GE
11WCI Q62206
12WCI Q94715
13WCI Q94948
14WCI Q615901
15WCI Q94874
16WCI Q171157
17WCI Q631801
18CORD, SERVICE
19WCI Q62196
20WCI Q502207
21CLAMP
22WCI Q500665
23WCI Q500411
24WCI Q63137
25ARECEPTACLE, STRAIGHT, 1/4“ BLADE TERMINAL
25RECEPTACLE, STRAIGHT, 3/16“ BLADE TERMINAL
25BRECEPTACLE, STRAIGHT, 5/16“ BLADE TERMINAL
26RECEPTACLE, FLAG, 1/4“ BLADE TERMINAL
