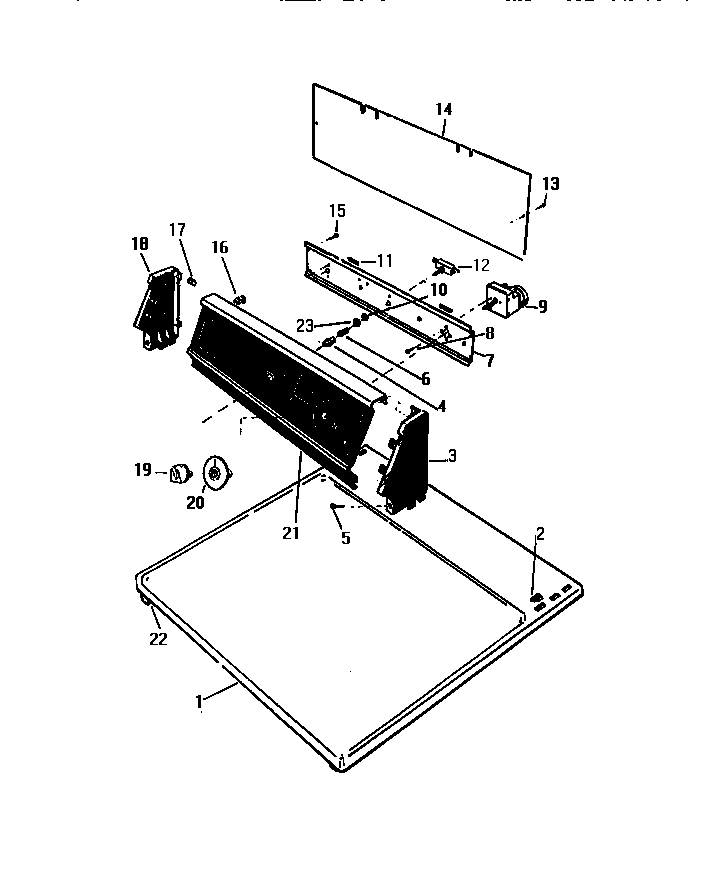

DG400JXV1 02 – CONSOLE, CONTROLS, TOP PANEL

DG400JXV1 02 – CONSOLE, CONTROLS, TOP PANEL

Written by

in

DG400JXV1 02 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
1PANEL TOP, FR AV
2WCI Q503065
3WCI Q616732
4WCI Q621231
5WCI Q504533
6WCI Q66797
7WCI Q616711
8SCREW (4)
9WCI Q634422
10WCI Q409004
11WCI Q500925
12START SWITCH
13SCREW (4)
14WCI Q616741
15SCREW (4)
16WCI Q504803
17SPEEDNUT (8)
18WCI Q616731
19KNOB TIMER
20WCI Q617641
21WCI Q633791
22SPRING CATCH
23WCI Q501450
