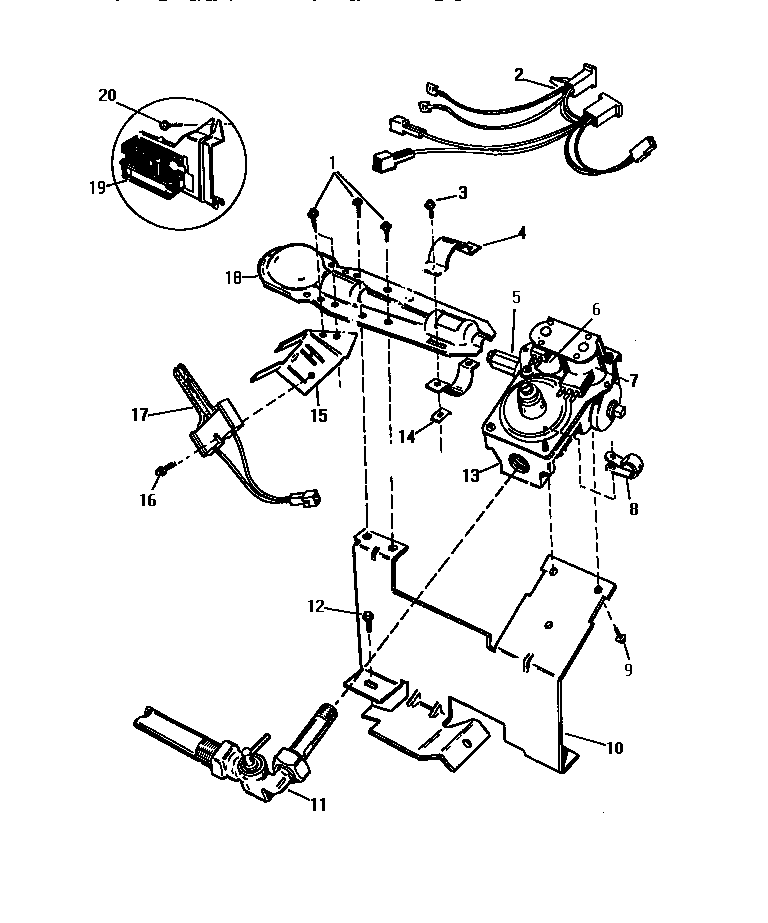

DG400JXW1 05 – GAS VALVE BURNER ASSEMBLY, SENSOR

Products

PositionProduct
1WCI Q414001
2WCI Q631782
3SCREW (4)
4WCI Q116032
5BORIFICES, LP GAS KIT
5ORIFICES, NATURAL GAS
5AORIFICES, MFD GAS
6WCI Q622602
7WCI Q622601
8WCI Q622604
9WCI Q505564
10WCI Q631531
11WCI Q600621
12WCI Q500437
13WCI Q630822
14SPEEDNUT (2)
15BRACKET IGNITER
16WCI Q505556
17IGNITER
18WCI Q125516
19SENSOR
20SCREW (4)
