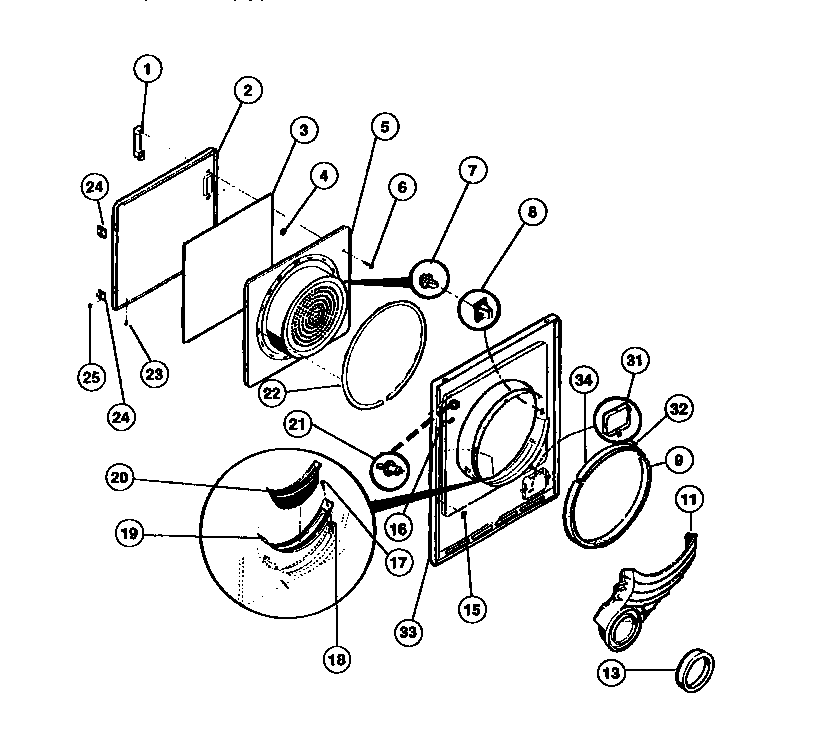

DG400TXD0 03 – DOOR, FRONT PANEL, LINT FILTER

DG400TXD0 03 – DOOR, FRONT PANEL, LINT FILTER

Written by

in

DG400TXD0 03 – DOOR, FRONT PANEL, LINT FILTER

Products

PositionProduct
1HANDLE-DOOR-WHITE
2WCI 5303299162
3SHIELD, HEAT
4WCI 3201205
5PANEL-I.D. ALMD
6WCI 5303281051
75303207102 Frigidaire Door Strike
8131658800 Frigidaire Dryer Door Catch Repair Kit
9WCI 5303281049
11DUCT-AIR
13134417000 Frigidaire Seal
15CLIP GUIDE (4)
16WCI 131063700
17131420300 Frigidaire Screw
18CLIP
20TRAP-LINT
21SWITCH-DOOR
22WCI 530321210
24HINGE, DOOR (2)
25134156200 Frigidaire Screw
31DOOR-ACCESS ALMD
325303300265 Frigidaire Oven Screw
33WCI 5303937122
345303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
