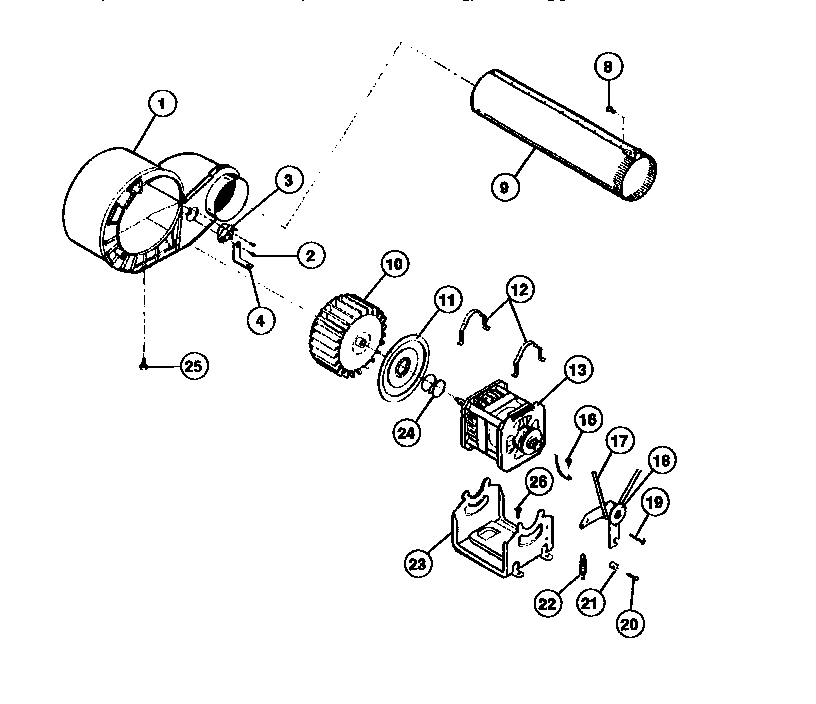

DG400TXD0 05 – MOTOR, FAN HOUSING, EXHAUST DUCT

DG400TXD0 05 – MOTOR, FAN HOUSING, EXHAUST DUCT

Written by

in

DG400TXD0 05 – MOTOR, FAN HOUSING, EXHAUST DUCT

Products

PositionProduct
1WCI 5303270858
2SCREW
3WCI 5308015398
4WCI 5303269972
85303015671 Frigidaire Bracket Termination Screw
9WCI 5303269973
10WCI 5303281079
11WCI 5303281080
12WCI 5303212834
13WCI 5303283470
16131243700 Frigidaire Screw
17134503600 Frigidaire Dryer Belt
18WCI 5303212849
19131205300 Frigidaire Screw
20131017900 Frigidaire Screw
21WCI 5303281076
225303281085 Frigidaire Spring Idler
24WCI 5303281083
25131205100 Frigidaire Screw
26WCI 3281077
