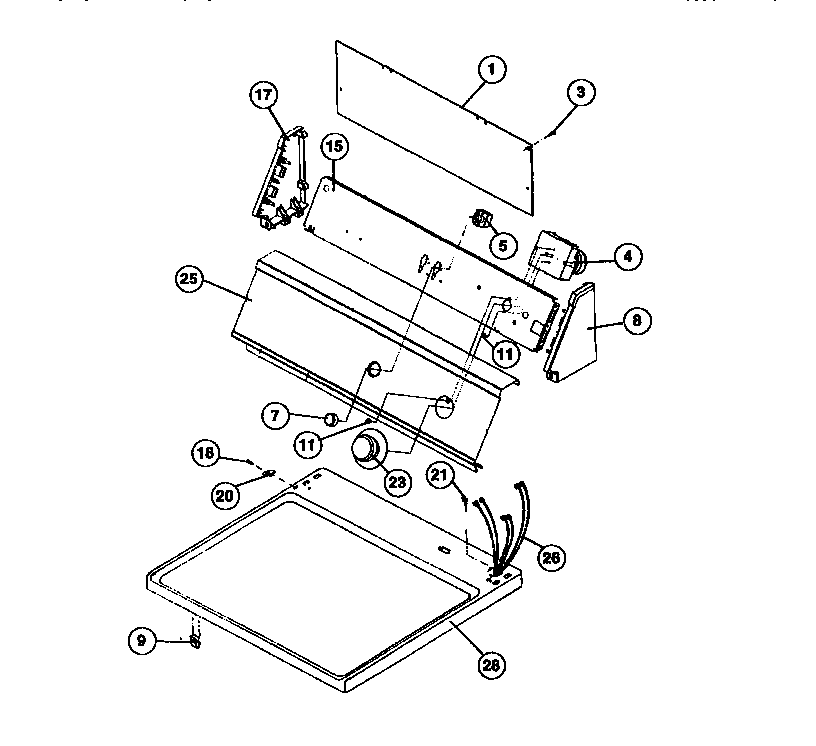

DG400TXW0 04 – CONSOLE, CONTROLS, TOP PANEL

DG400TXW0 04 – CONSOLE, CONTROLS, TOP PANEL

Written by

in

DG400TXW0 04 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
1COVER-BACK
3131205100 Frigidaire Screw
4TIMER
5WCI 131048000
7KNOB-START SWITCH, BLACK
8WCI 5303291352
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
15WCI 131297306
17WCI 5303291344
18WCI 5303289526
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23WCI 131118902
25WCI 131260100
26WCI 131256000
28WCI 131130402
