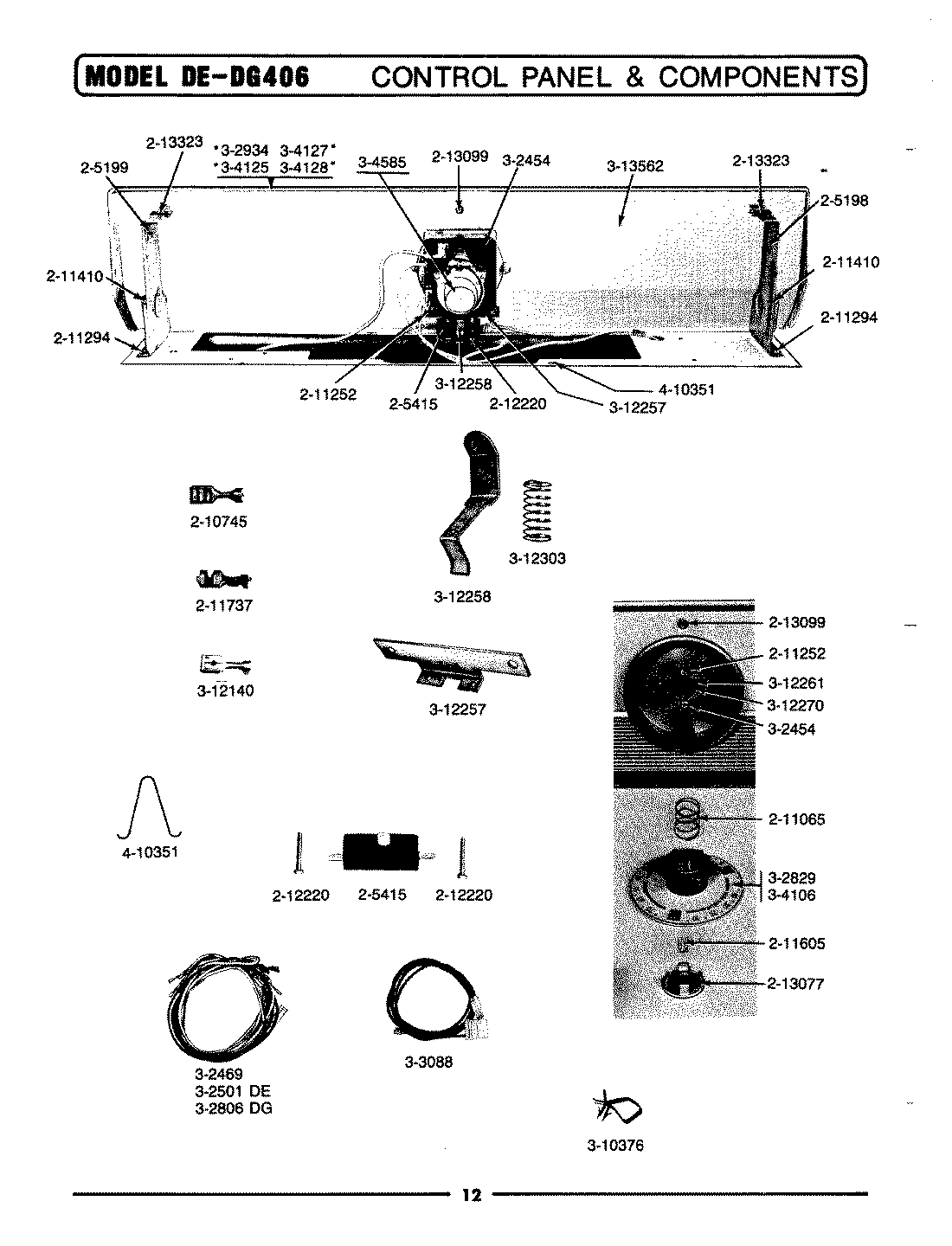

DG406 04 – CONTROL PANEL & COMPONENTS

Products

Position	Product
1	MAY 205198
2	MAY 205199
3	W10820036 Whirlpool Door Switch Kit
4	MAY 210745
5	WP211065 Whirlpool Timer Spring
6	WP489399 Whirlpool Refrigerator Screw
7	WP90767 Whirlpool Screw
8	MAY 211410
9	MAY 211605
10	MAY 211737
11	MAY 212220
12	MAY 213077
13	MAY 213099
14	MAY 213323
15	MAY Y302454
16	HARNESS FOR SHROUD
18	MAY 302806
19	MAY Y302829
20	MAY 302934
21	MAY 303088
22	MAY Y304106
23	CONTROL PANEL, SUN-GLOW
24	MAY 304127
25	CONTROL PANEL KIT, SUN-GLOW
26	MAY Y304585
27	MAY Y310376
28	MAY Y312140
29	BRACKET
30	MAY 312258
31	WASHER
32	MAY Y312270
33	MAY 312303
34	MAY 313562
35	MAY 410351
