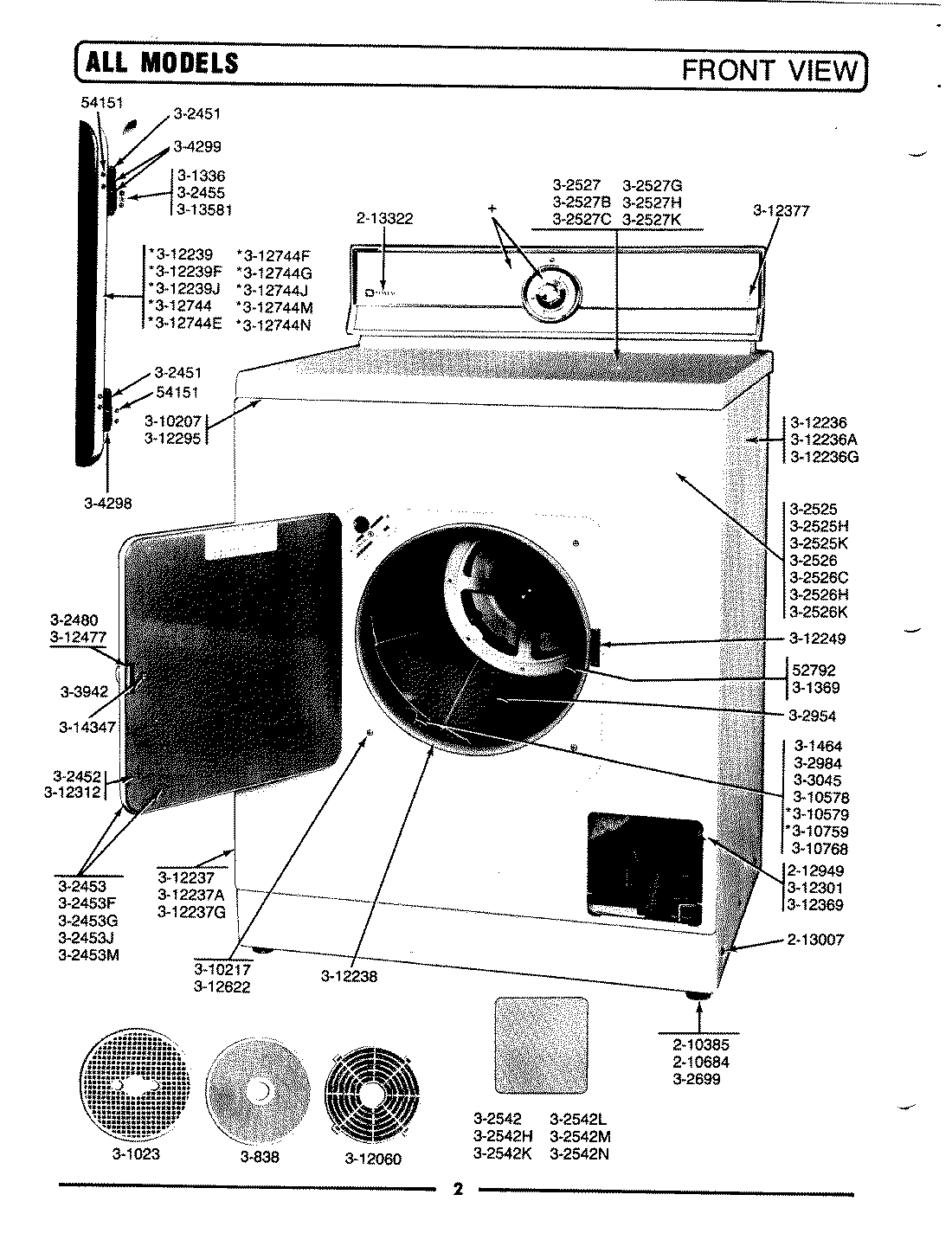

DG407 07 – FRONT VIEW
Written by
in
DG407 07 – FRONT VIEW
Products
Position
Product
1
MAY 052792
2
MAY 054151
3
WP210385 Whirlpool Lock Nut
4
WP210684 Whirlpool Dishwasher Leveling Leg Pad
5
SCREW, BUSHINGS
6
213007 Whirlpool Screw #12
7
MAY 213322
8
MAY 214697
9
MAY 300838
10
MAY 301023
12
MAY 301369
14
HINGE ASSEMBLY
15
DOOR LINER
16
MAY 302453
17
MAY 302453F
18
MAY 302453G
19
MAY 302453J
20
MAY 302453M
21
MAY Y302455
22
MAY 302480
26
FRONT PANEL-WHITE
27
MAY 302526C
28
MAY 302526H
29
MAY 302526K
30
TOP COVER-WHITE
31
MAY 302527B
32
MAY 302527C
33
MAY 302527G
34
MAY 302527H
35
MAY 302527K
36
MAY 302542
37
MAY 302542H
38
MAY 302542K
39
MAY 302542L
40
MAY 302542M
41
MAY 302542N
42
LEG, ADJUSTABLE (W/NUT)—S
43
DRUM W/FELT – PORCELAIN
44
BAFFLE ASSEMBLY – POLY
46
MAY 303942
47
MAY Y304298
48
MAY 304299
50
MAY 310217
51
MAY 310578
52
SCREW, No.10-24 X 11/16 INCH
53
MAY Y310759
54
MAY 310768
55
SHIELD FOR SPIDER
56
MAY 312236
57
MAY 312236A
58
MAY 312236G
59
PANEL-WHITE
60
MAY 312237A
61
MAY 312237G
62
MAY 312238
63
MAY 312239
64
MAY 312239F
65
MAY 312239J
66
MAY 312249
68
BUSHING FOR ACCESS STUD
69
MAY 312312
70
SLEEVE, ACCESS DOOR RUBBER
71
MAY 312377
72
MAY 312477
73
MAY 312622
74
MAY Y312744
75
MAY 312744E
76
MAY 312744F
77
MAY 312744G
78
MAY 312744J
79
MAY 312744M
80
MAY 312744N
81
SLEEVE FOR DOOR WIRES
82
WP400021-1 Whirlpool Screw
←
