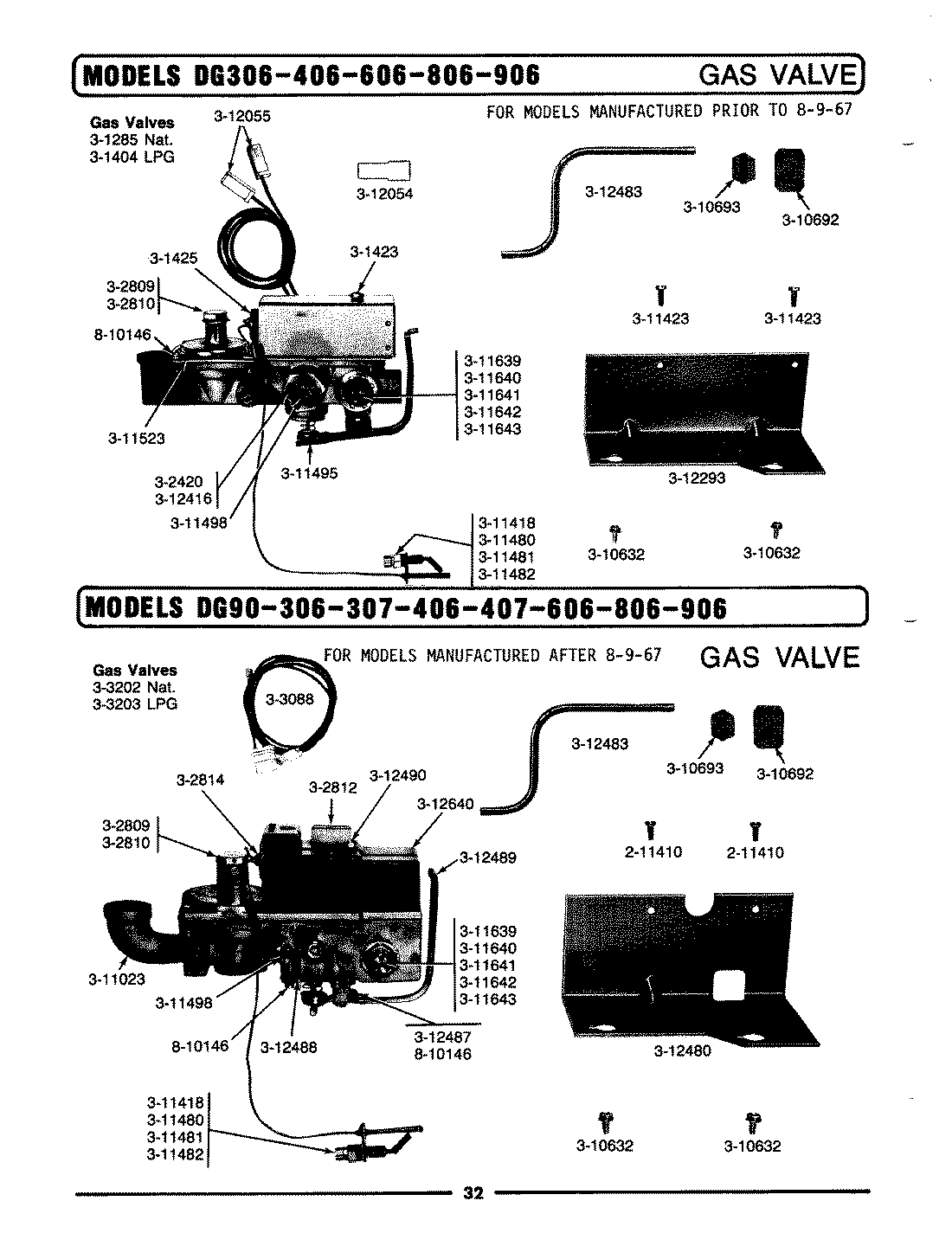

DG407 08 – GAS VALVE (AFTER 8-9-67)

DG407 08 – GAS VALVE (AFTER 8-9-67)

Written by

in

DG407 08 – GAS VALVE (AFTER 8-9-67)

Products

PositionProduct
1MAY 211410
2SCREW ASSEMBLY – LEAK LIMIT
3MAY 302810
4MAY Y302812
5MAY 302814
6MAY 303088
7MAY Y303202
8MAY Y303203
9MAY Y310632
10COMPRESSION NUT
11MAY Y310693
12STREET ELBOW, 3/8 INCH
13MAY Y311418
14MAY Y311480
15PILOT ORIFICE-MFG.
16MAY Y311482
17MAY Y311498
18MAY Y311639
19MAY 311640
20ORIFICE FOR MAIN BURNER
21ORIFICE, MAIN BURNER (MFG)
22ORIFICE FOR MAIN BURNER
23MAY 312480
24MAY Y312483
25BRACKET FOR LEVER
26GASKET FOR PILOT
27LEVER FOR PILOT
28SCREW FOR MAIN SOLENOID
29VALVE COVER FOR 3-3202
30MAY 810146
