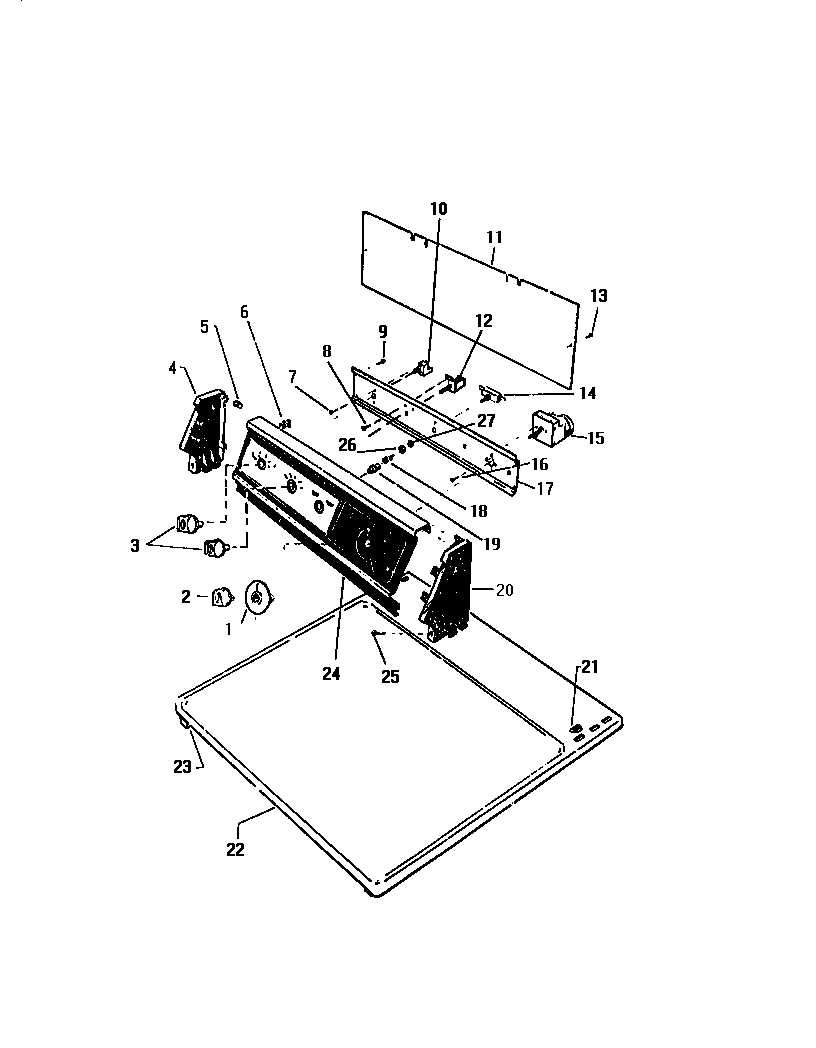

DG500EXF5 02 – CONSOLE, CONTROLS, TOP PANEL

DG500EXF5 02 – CONSOLE, CONTROLS, TOP PANEL

Written by

in

DG500EXF5 02 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
1WCI Q617641
3KNOB TIMER
4WCI Q616731
5SPEEDNUT (8)
6WCI Q504803
7SCREW
9SCREW (4)
10WCI G617633
11WCI Q616741
12WCI Q152913
13SCREW (4)
14START SWITCH
15WCI Q168608
16SCREW (4)
17WCI Q616711
18WCI Q66793
19WCI Q621231
20WCI Q616732
21WCI Q503065
22WCI Q621247
23SPRING CATCH
24WCI Q616851
25WCI Q504533
26WCI Q501450
27WCI Q409004
