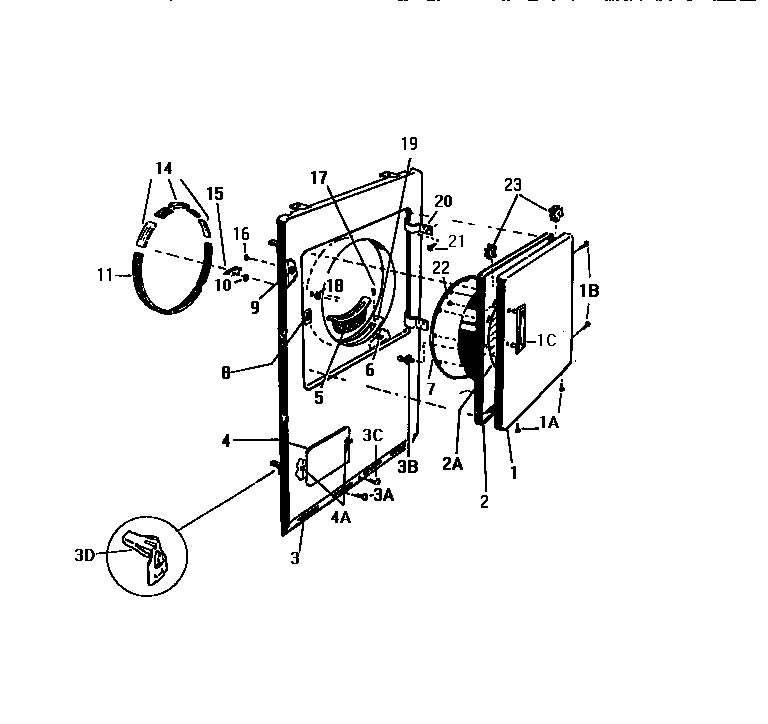

DG500JXV1 03 – FRONT PANEL, DOOR

Products

Position	Product
*56402	WCI Q15141
*56401	WCI Q15142
1C	WCI Q622791
1	PANEL OUTER DOOR
2	PANEL INNER DOOR
2A	SHIELD
3C	WCI Q500717
3A	WCI Q405802
3B	WCI Q504552
3	PANEL FRONT
3D	CLIP (4)
4	ACCESS DOOR
4A	SUPPORT
5	WCI Q632621
6	WCI Q500265
7	WCI Q167703
8	WCI Q504551
9	WCI Q500255
10	WCI Q409004
11	WCI Q142888
14	GUIDE KIT
15	WCI Q622422
16	SCREW (4)
17	WCI Q403103
18	WCI Q501450
19	FRAME LINT TRAP
20	WCI Q607301
21	WCI Q504773
22	WCI Q503952
23	WCI Q631591
