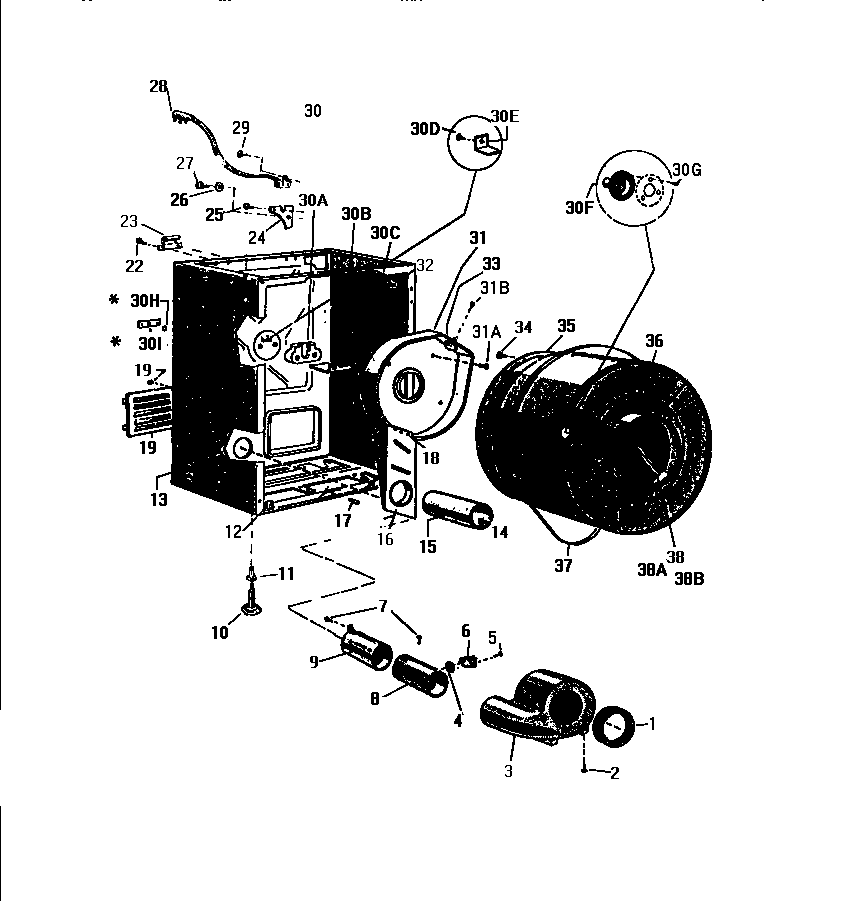

DG500JXV1 04 – CABINET, DRUM, HEATER HOUSING

Products

Position	Product
1	WCI Q19462
2	SCREW (4)
3	WCI Q171281
4	WCI Q606131
6	WCI Q634402
8	DUCT, THERM.
9	WCI Q182901
10	WCI Q504971
11	GROMMET ( FOOT BOLT )
12	WCI Q505011
13	BODY
15	TUBE, BURNER
16	WCI Q116393
17	TOGGLE KIT
19A	SCREW (4)
19	WCI Q94811
23	WCI Q155561
24	WCI Q167097
25	WCI Q403102
26	WCI Q500411
27	WCI Q500665
28	WCI Q612664
29	WCI Q435152
30H	BALL
30I	SPEED NUT STRIP
30A	BEARING
30B	BRACKET
30E	BRACKET
30F	SHAFT
30C	SCREW
30G	SCREW
30	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
31B	SCREW
31	HEATER HOUSING
32	WCI Q505564
33	THERMOSTAT, HI LIMIT
34	SCREW (3)
35	WCI Q165773
36	SPINNER, BASKET
37	WCI Q63807
38A	WCI Q615891
38	WCI Q615892
38B	WCI Q501592
