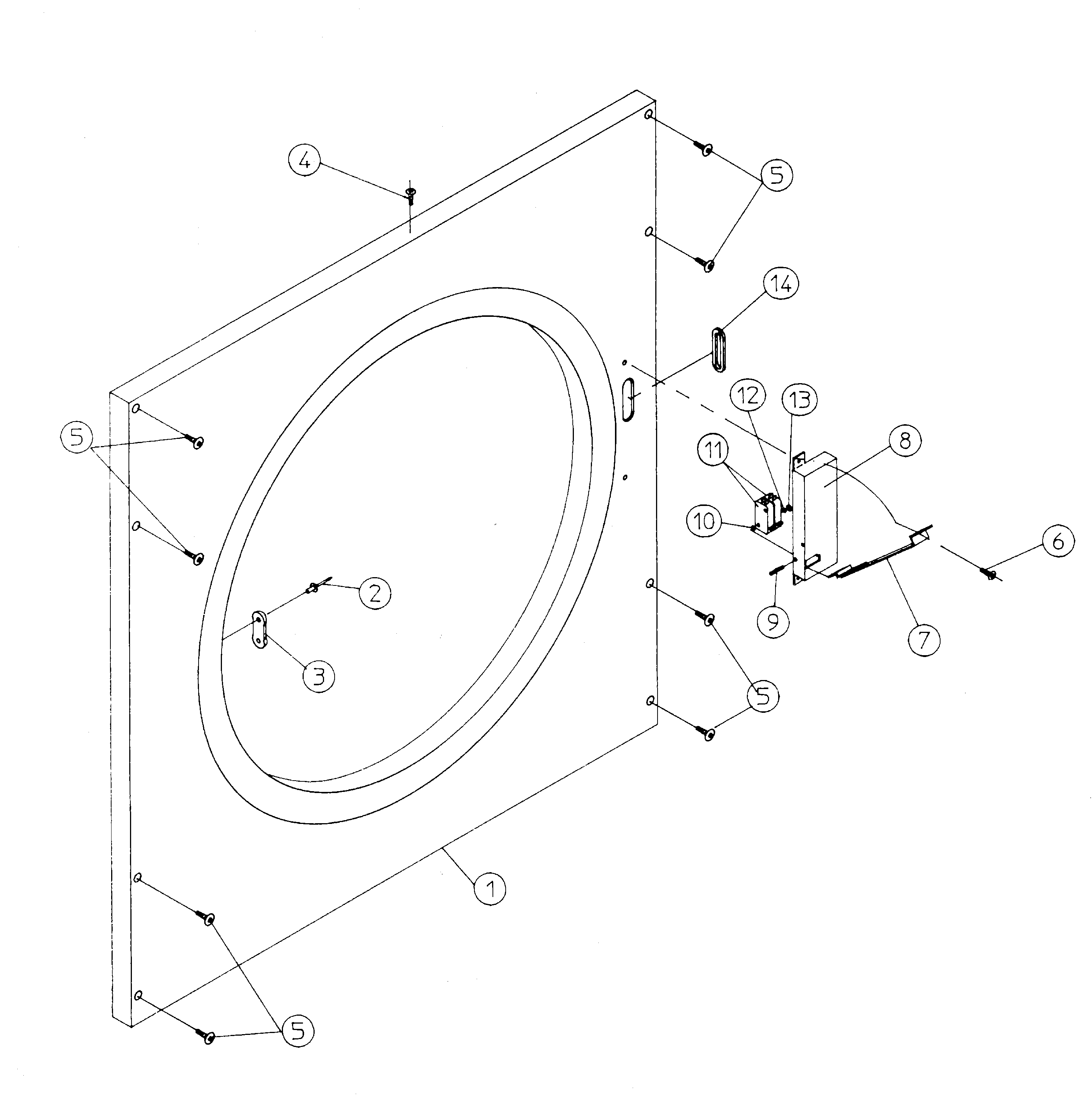

DG50PN1 07 – FRONT PANEL ASSY. (LATCH TYPE-DG30/50)
Written by
in
DG50PN1 07 – FRONT PANEL ASSY. (LATCH TYPE-DG30/50)
Products
| Position | Product |
|---|---|
| 000 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 001 | MAY A875301 |
| 001 | MAY A875300 |
| 002 | MAY A152215 |
| 003 | MAY A170330 |
| 004 | MAY A150300 |
| 005 | MAY A150415 |
| 006 | MAY A150301 |
| 007 | MAY A313215 |
| 008 | MAY A313217 |
| 008 | MAY A800445 |
| 008 | MAY A800446 |
| 009 | MAY A150025 |
| 011 | MAY A137004 |
| 012 | MAY A153045 |
| 013 | MAY A152016 |
| 014 | GROMMET, RUBBER |
| 014 | MAY A404502 |
| 014 | MAY A404500 |
