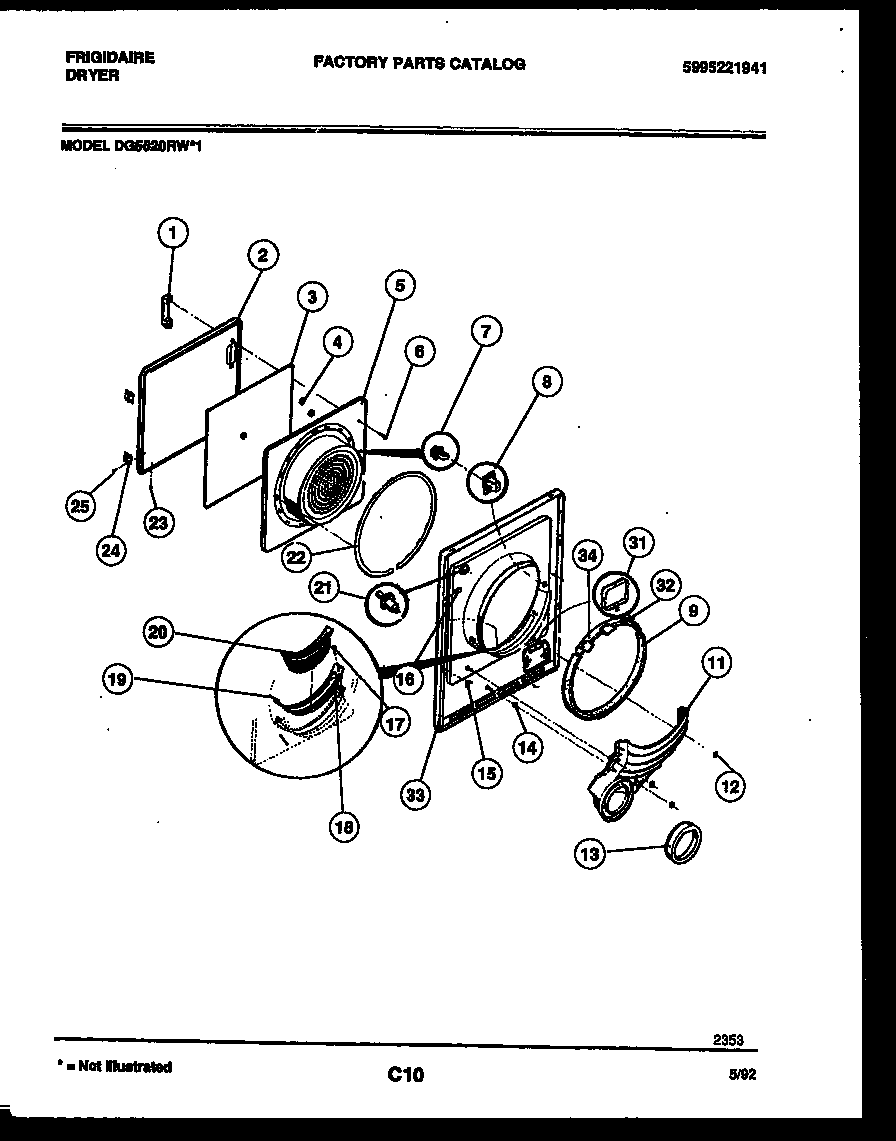

DG5520RW1 03 – DOOR PARTS

DG5520RW1 03 – DOOR PARTS

Written by

in

DG5520RW1 03 – DOOR PARTS

Products

PositionProduct
1WCI 5303286643
2PANEL-O.D. WHITE
3SHIELD, HEAT
4WCI 3201205
5PANEL – ID WHITE
6WCI 5303281051
75303207102 Frigidaire Door Strike
8131658800 Frigidaire Dryer Door Catch Repair Kit
9WCI 5303281049
11WCI 5308015173
12WCI 3281089
13134417000 Frigidaire Seal
145300809968 Frigidaire Dishwasher P-1 Washer
15CLIP GUIDE (4)
16CLIP
17131420300 Frigidaire Screw
18CLIP
20TRAP-LINT
21SWITCH-DOOR
22GASKET, DOOR
24HINGE, DOOR (2)
25SCREW (8)
31DOOR-ACCESS WHITE
325303300265 Frigidaire Oven Screw
33WCI 5303283990
345303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
