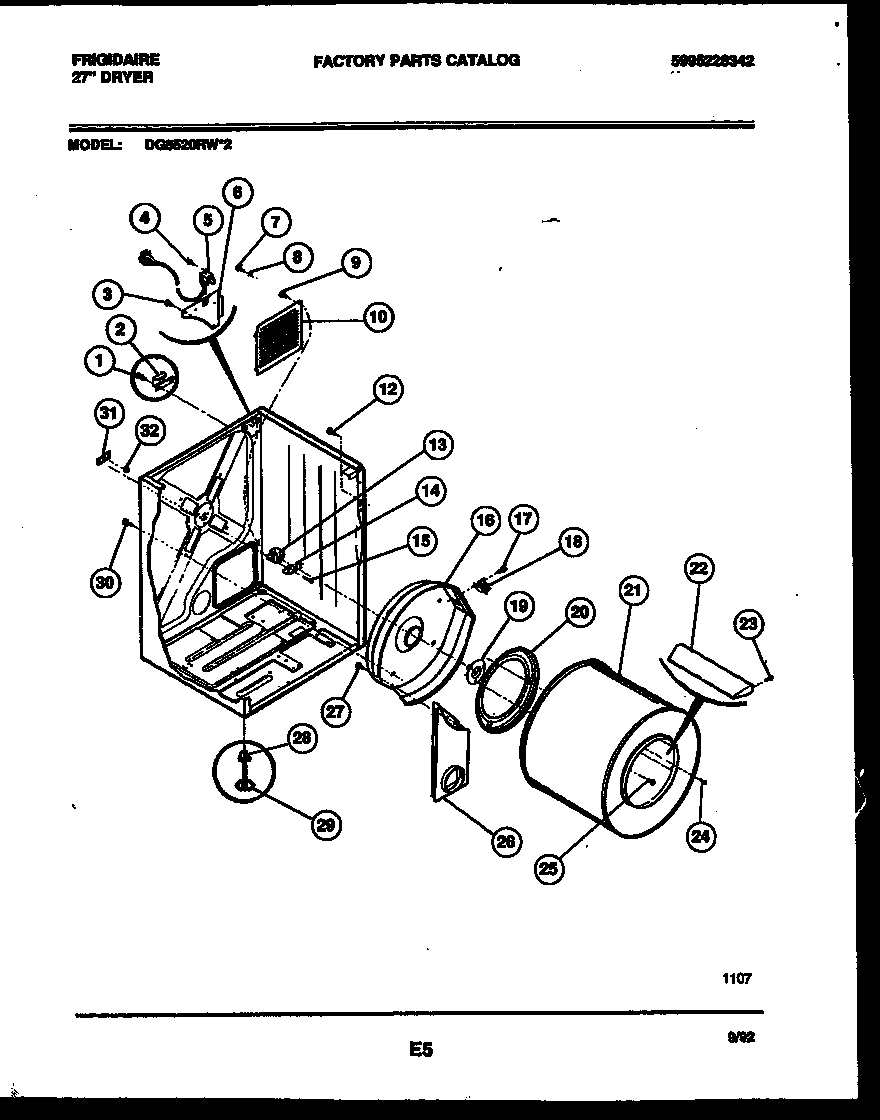

DG5520RW2 02 – CABINET AND COMPONENT PARTS

Products

Position	Product
*66891	WCI 5303281153]
*66891	CLIP-CAB. FRONT BTM
1	WCI 08011338
2	WCI 3281175
4	WCI 5308015309
5	CORD-SERVICE
6	WCI 3281130
7	134154100 Frigidaire Screw 10-32 x 0.375 Co
8	WASHER
10	PLATE-COVER
13	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
14	131724301 Frigidaire Dryer Drum Bearing Bracket
15	131205400 Frigidaire Screw
16	HEATER HSG & SEAL ASSEMBLY
17	SCREW (2)
18	5308015399 Frigidaire P-1 THERMSTAT-Safety
19	5303931781 Frigidaire Shaft
20	3204254 Frigidaire Baffle Assembly
21	WCI 3201199
22	137552900 Frigidaire Vane
23	131382300 Frigidaire Screw-VANE
24	WCI 5303207393
25	SCREW (3) (PART OF REAR BEARING KIT.)
26	DUCT-HEAT
27	SCREW
28	WCI 3201202
29	BOLT-FOOT (4)
30	WCI 5303010202
31	5303281020 Frigidaire Ball Clip
32	5303281019 Frigidaire Ball Assembly
