DG600EXD2 02 – CONSOLE, CONTROLS, TOP PANEL – Aparts

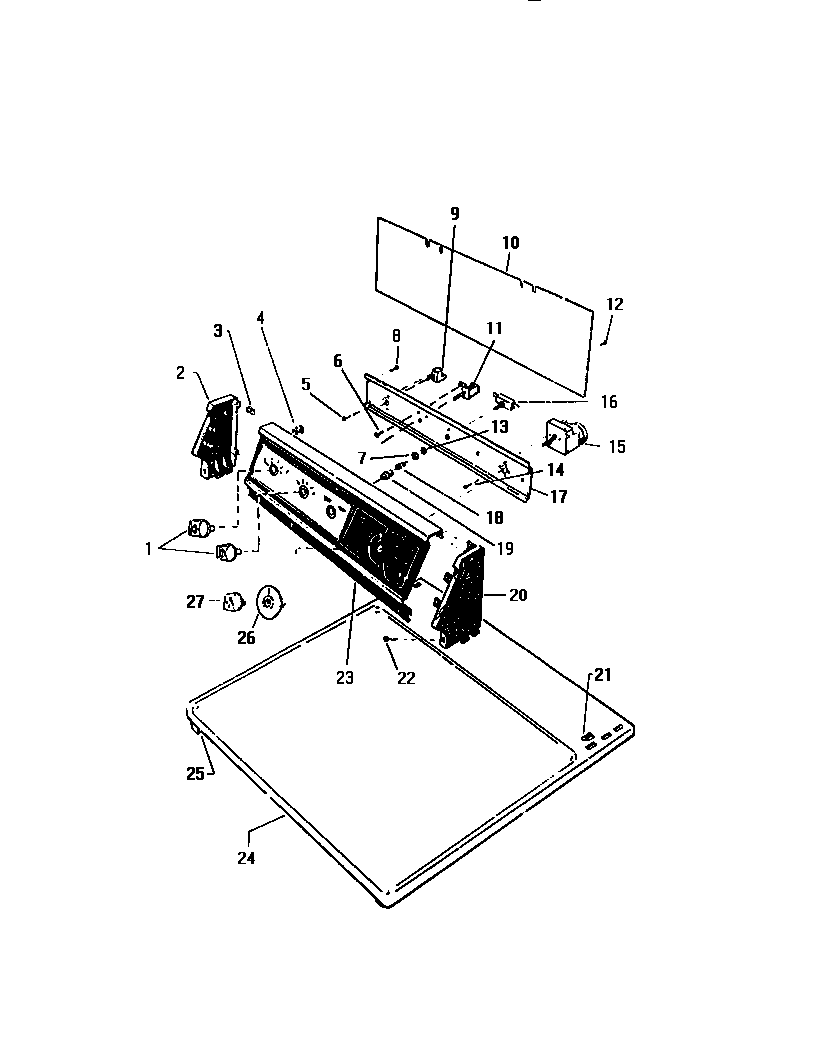

DG600EXD2 02 – CONSOLE, CONTROLS, TOP PANEL

Products

Position	Product
2	WCI Q616731
3	SPEEDNUT (8)
4	WCI Q504801
5	SCREW
7	WCI Q501450
8	SCREW (4)
9	SWITCH, SELEC.
10	WCI Q616741
11	WCI Q152913
12	SCREW (4)
13	WCI Q409004
14	SCREW (4)
15	WCI Q618531
16	START SWITCH
17	WCI Q616711
18	WCI Q66793
19	WCI Q621231
20	WCI Q616732
21	WCI Q5030965
22	WCI Q504533
23	WCI Q616911
24	WCI Q621246
25	SPRING CATCH
26	WCI Q617641
27	KNOB TIMER
