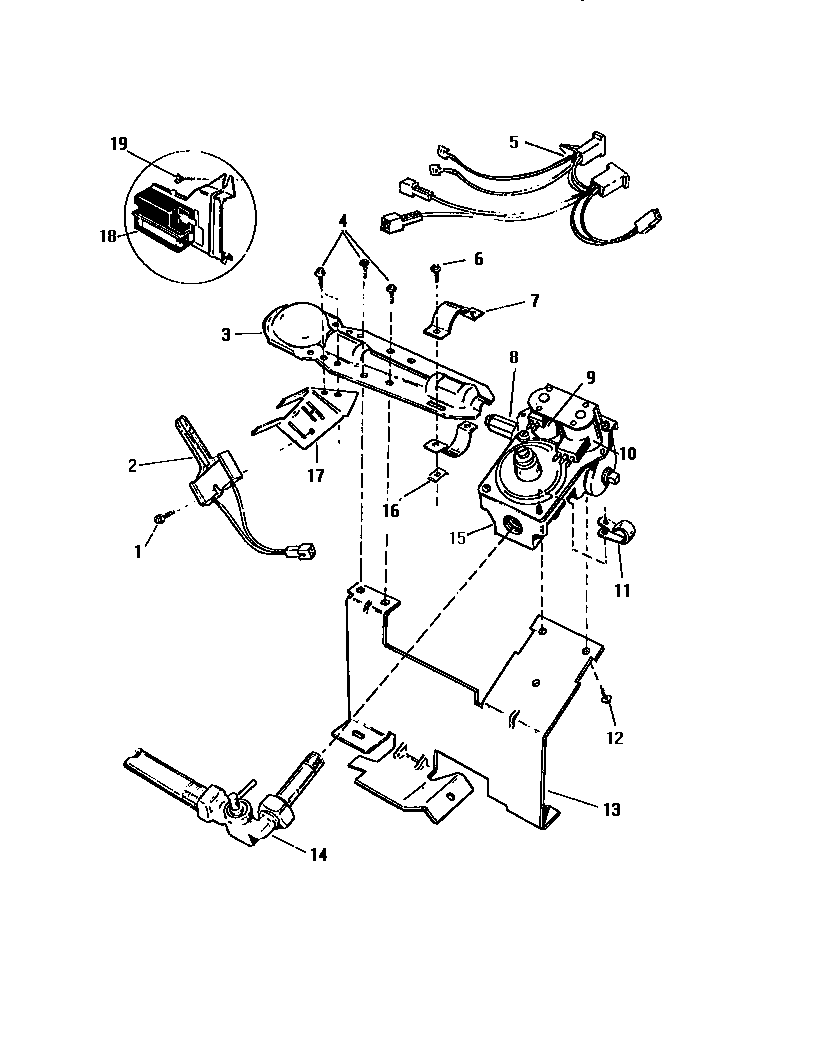

DG600EXD5 06 – GAS VALVE BURNER ASSY., SENSOR – Aparts

DG600EXD5 06 – GAS VALVE BURNER ASSY., SENSOR

Products

Position	Product
1	WCI Q505556
2	IGNITER
3	WCI Q125516
4	WCI Q414001
5	WCI Q631781
6	SCREW (4)
7	WCI Q116032
8	ORIFICES, NATURAL GAS
8A	ORIFICES, MFD GAS
8B	ORIFICES, LP GAS KIT
9	WCI Q622602
10	WCI Q622601
11	WCI Q622604
12	WCI Q505564
13	WCI Q631531
14	WCI Q600621
15	WCI Q630822
16	SPEEDNUT (2)
17	BRACKET IGNITER
18	SENSOR
19	SCREW (4)
