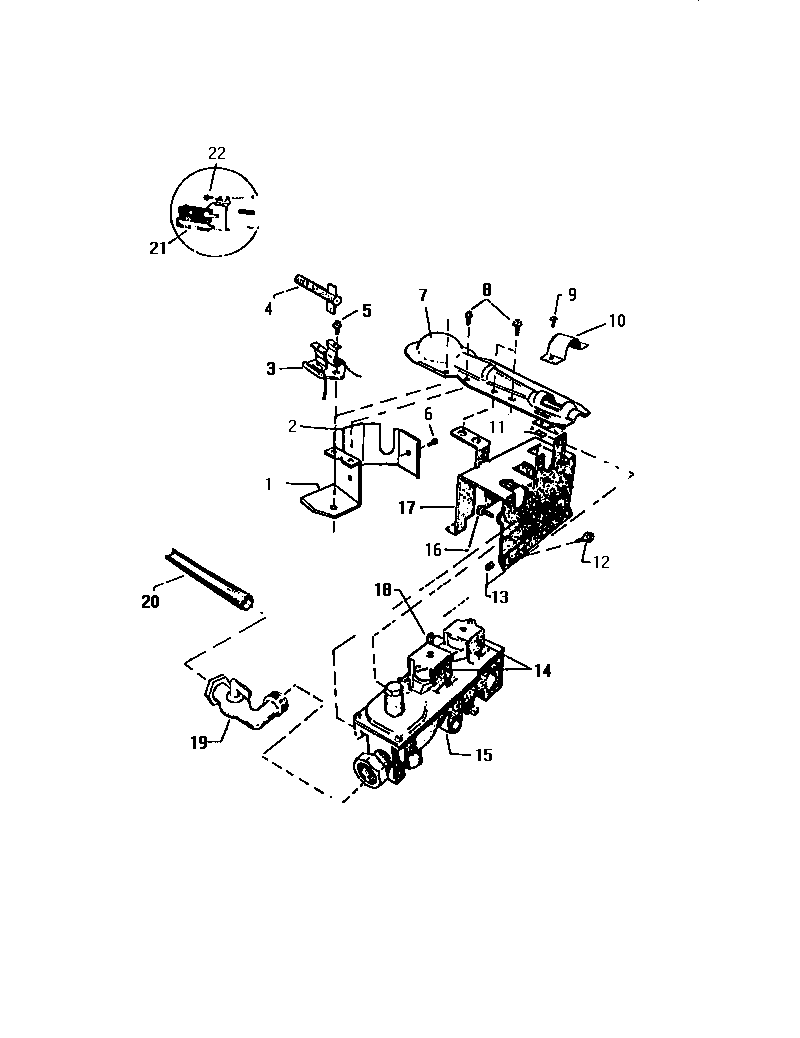

DG600EXF4 05 – GAS VALVE BURNER ASSY., SENSOR – Aparts

DG600EXF4 05 – GAS VALVE BURNER ASSY., SENSOR

Products

Position	Product
1	WCI Q600601
2	WCI Q19871
3	SPRING ASSY IGNITER
4	IGNITER
5	WCI Q19761
6	WCI Q419401
7	WCI Q125516
9	SCREW (4)
10	WCI Q116032
11	SPEEDNUT (2)
12	WCI Q505564
13	WCI Q500260
14	WCI Q171854
15	WCI Q171511
16	WCI Q414001
17	WCI Q600631
18A	ORIFICES, MFD GAS
18	ORIFICES, NATURAL GAS
18B	ORIFICES, LP GAS KIT
19	WCI Q600621
21	SENSOR
22	SCREW (4)
