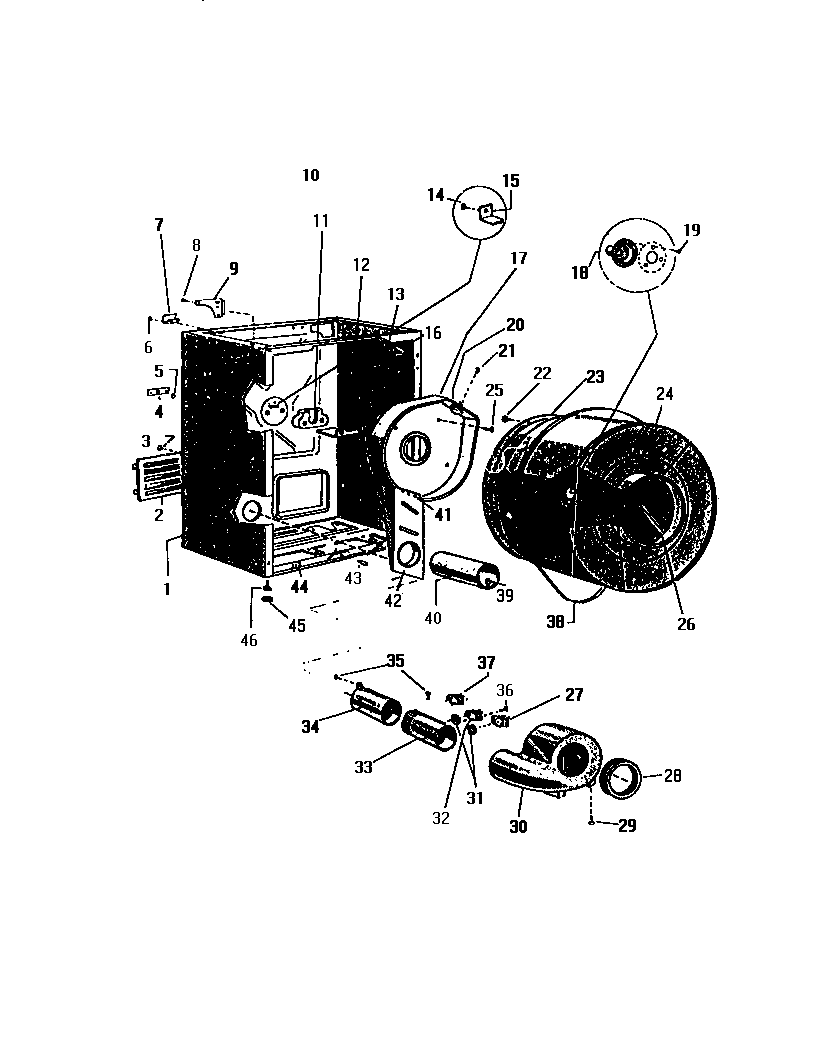

DG600EXH4 04 – CABINET, DRUM, HEATER HOUSING

Products

Position	Product
1	BODY, WEAT
2	WCI Q94811
4	SPEED NUT STRIP
5	BALL
7	WCI Q155561
8	WCI Q409702
9	WCI Q133282
10	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
11	BEARING
12	BRACKET
15	BRACKET
17	HEATER HOUSING
18	SHAFT
19	SCREW
20	THERMOSTAT, HI LIMIT
22	SCREW (3)
23	WCI Q165773
24	SPINNER, BASKET
25	SCREW
26B	WCI Q501592
26A	WCI Q615891
26	WCI Q615892
27	THERMOSTAT, REGULAR HEAT
28	WCI Q19462
29	SCREW (4)
30	WCI Q171281
31	WCI Q606131
32	THERMOSTAT, MEDIUM HEAT
33	WCI Q603012
34	WCI Q182901
36	SCREW
37	THERMOSTAT, LOW HEAT
38	WCI Q63807
39	WCI Q505564
40	TUBE, BURNER
41	SCREW (4)
42	WCI Q116393
43	WCI Q504281
44	WCI Q502956
45	WCI Q16971
46	WCI Q198170
