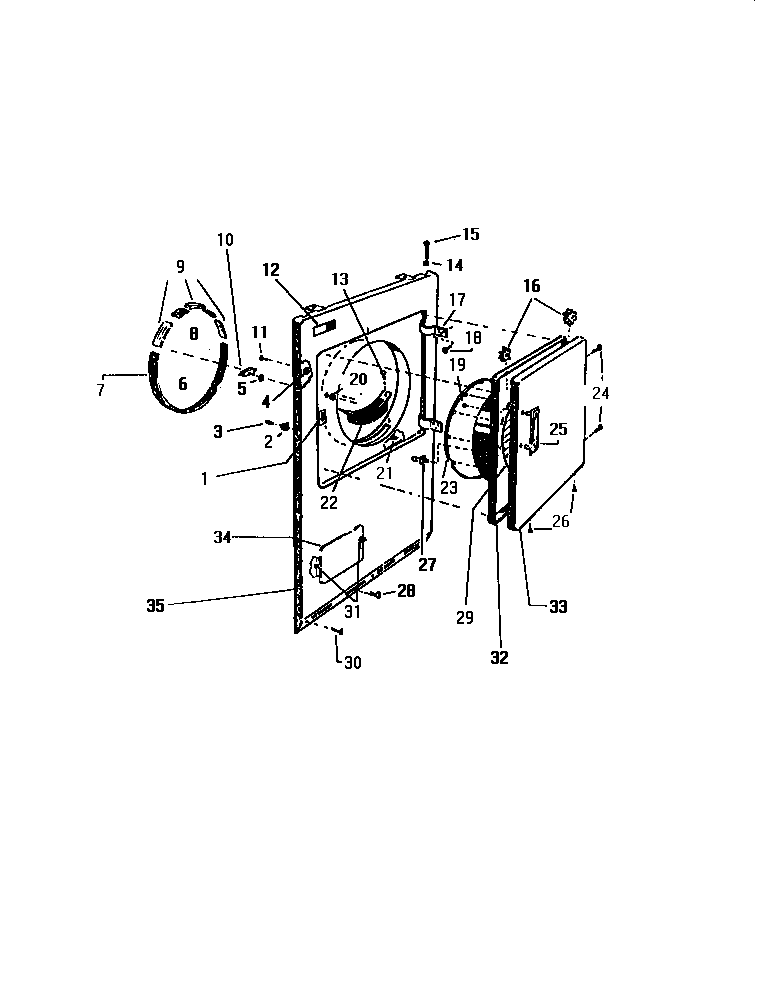

DG600EXW1 03 – FRONT PANEL, DOOR

DG600EXW1 03 – FRONT PANEL, DOOR

Written by

in

DG600EXW1 03 – FRONT PANEL, DOOR

Products

Position	Product
1	WCI Q504551
2	WCI 1466314
3	WCI Q502482
5	WCI Q409004
6	WCI Q15142
7	WCI Q142888
8	WCI Q15141
9	GUIDE KIT
10	START SWITCH
11	SCREW (4)
12	WCI Q604442
14	WCI Q500155
15	WCI Q55021
16	WCI Q40120
17	WCI Q94651
18	WCI Q500433
19	WCI Q503952
20	WCI Q501450
21	WCI Q500255
22	WCI Q168541
23	WCI Q167701
25	WCI Q151326
26	WCI Q411004
27	WCI Q504552
28	WCI Q405802
29	SHIELD
30	WCI Q501687
31	SUPPORT
32	WCI Q125730
33	WCI Q125670
34	ACCESS DOOR, WHITE
35	WCI Q173331
