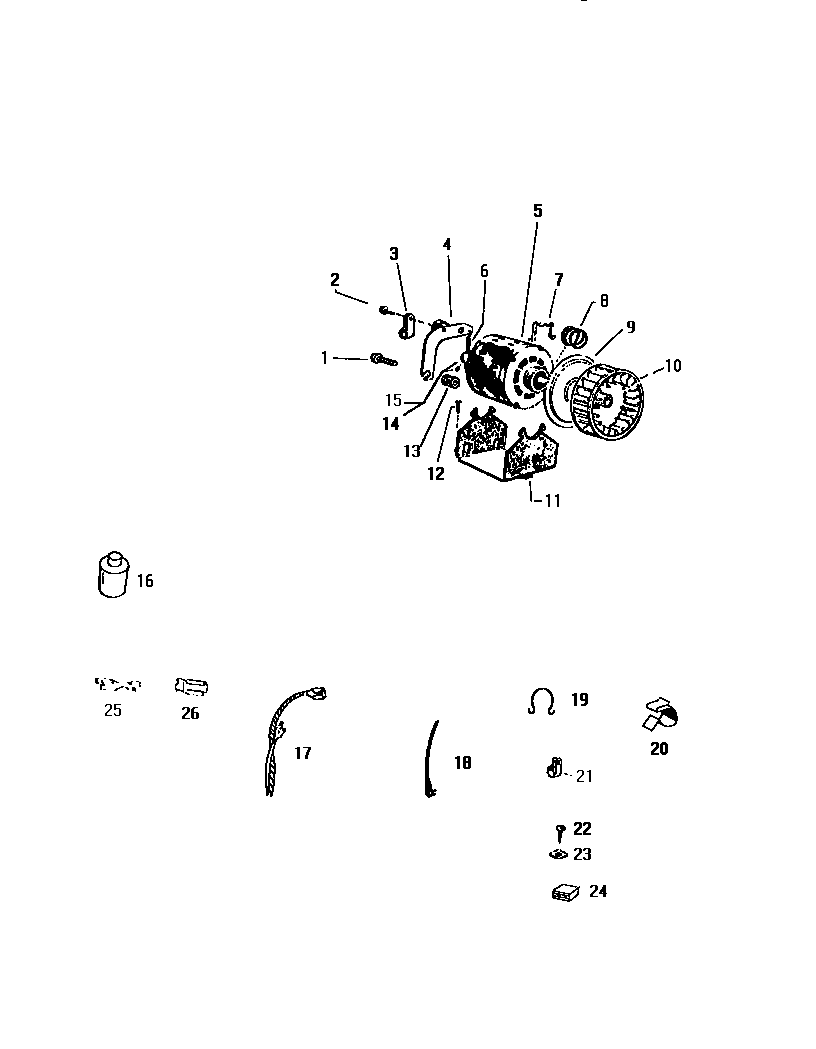

DG600EXW4 07 – MOTOR, MISCELLANEOUS

Products

Position	Product
*15921	WCI 1443982
*15920	SEALING MASTER
1	WCI Q433401
2	WCI Q414002
3	CLAMP
4	IDLER PULLEY AND BRACKET
5	MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
5F	START SWITCH FOR Q616391 EMER.
5D	START SWITCH FOR Q615921 WW
5A	(MOTOR PRODUCT NO., W.W.) MOTOR SERVICE REPLACEMENT IS P/N
5B	MOTOR PRODUCT NO., G.E. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
5C	MOTOR PRODUCT NO. Q616391, EMER. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
5E	START SWITCH FOR Q616401 GE
6	SPRING
7	WCI Q62206
8	WCI Q94715
9	WCI Q94948
10	WCI Q615901
11	WCI Q94874
12	SCREW
13	WCI Q600179
14	SCREW
15	PULLEY (SEE NOTE 1)
16	WCI Q49587
17	WCI Q618591
18	CORD, SERVICE
19	WCI Q62196
20	WCI Q502207
21	CLAMP
22	WCI Q500665
23	WCI Q500411
24	WCI Q63137
25B	RECEPTACLE, STRAIGHT, 5/16`` BLADE TERMINAL
25	RECEPTACLE, STRAIGHT, 3/16`` BLADE TERMINAL
25A	RECEPTACLE, STRAIGHT, 1/4`` BLADE TERMINAL
26	RECEPTACLE, FLAG, 1/4`` BLADE TERMINAL
