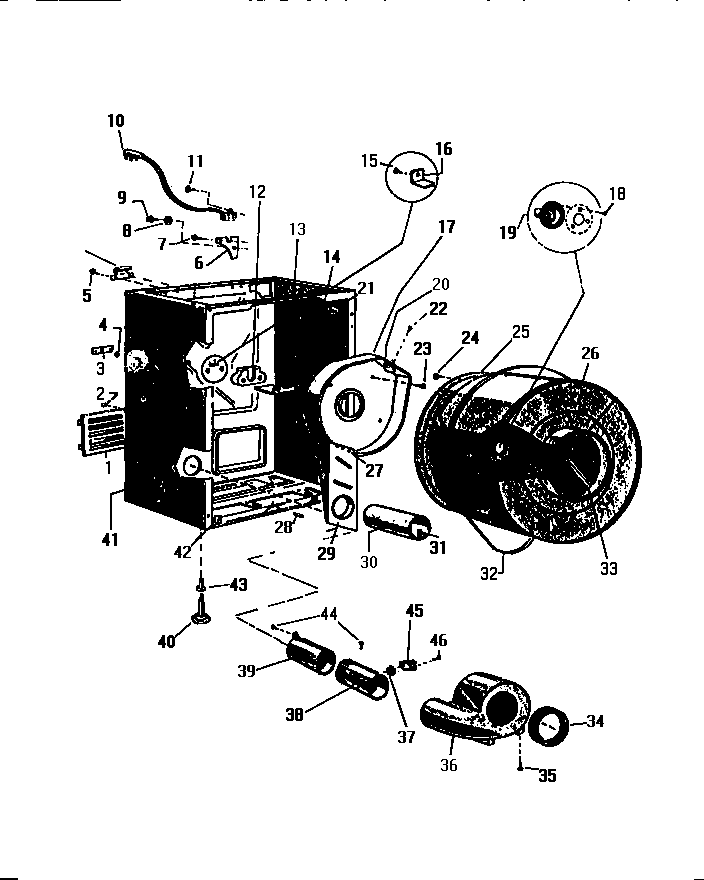

DG600JXF1 04 – DRUM

Products

Position	Product
*87200	WCI Q142860
1	WCI Q94811
2	WCI Q506553
3	SPEED NUT STRIP
4	BALL
6	WCI Q167097
7	WCI Q435096
8	WCI Q500411
9	WCI Q500665
10	WCI Q612664
11	WCI Q606584
12	BEARING
13	BRACKET
14	WCI Q4036046
16	BRACKET
17	HEATER HOUSING
18	SCREW
19	SHAFT
20	THERMOSTAT, HI LIMIT
24	SCREW (3)
25	WCI Q165773
26	WCI Q169744
28	TOGGLE KIT
29	WCI Q116393
30	TUBE, BURNER
31	WCI Q505564
32	WCI Q63807
33B	WCI Q501592
33	WCI Q615892
33A	WCI Q615891
34	WCI Q19462
35	SCREW (4)
36	WCI Q171281
37	WCI Q
38	DUCT, THERM.
39	WCI Q82901
40	WCI Q504971
41	BODY, COFFEE
42	WCI Q505011
43	GROMMET ( FOOT BOLT )
44	SCREW (4)
45	WCI Q634402
46	SCREW
