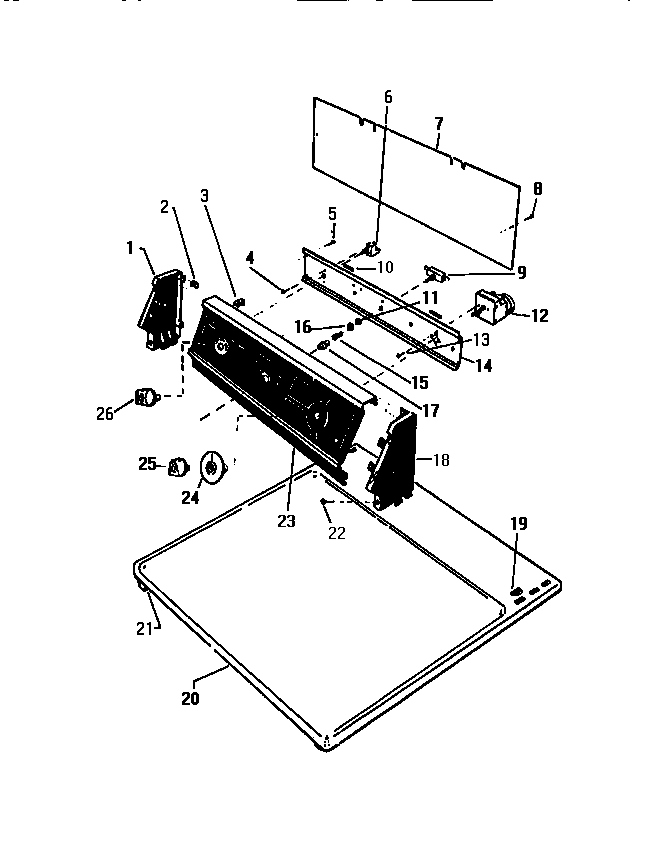

DG600JXW1 02 – CONSOLE & CONTROLS

Products

Position	Product
1	WCI Q616731
2	SPEEDNUT (8)
3	WCI Q504803
4	SCREW
5	SCREW (4)
6	SWITCH, SELECTOR
7	WCI Q616741
8	SCREW (4)
9	START SWITCH
10	WCI Q500925
11	WCI Q409004
12	WCI Q634302
13	SCREW (4)
14	WCI Q616711
15	WCI Q66783
16	WCI Q501450
17	WCI Q621233
18	WCI Q616732
19	WCI Q503065
20	PANEL, TOP, WHITE
21	SPRING CATCH
22	WCI Q504533
23	WCI Q63405
24	WCI Q617641
25	KNOB TIMER
26	KNOB, SWITCH, SELECTOR
