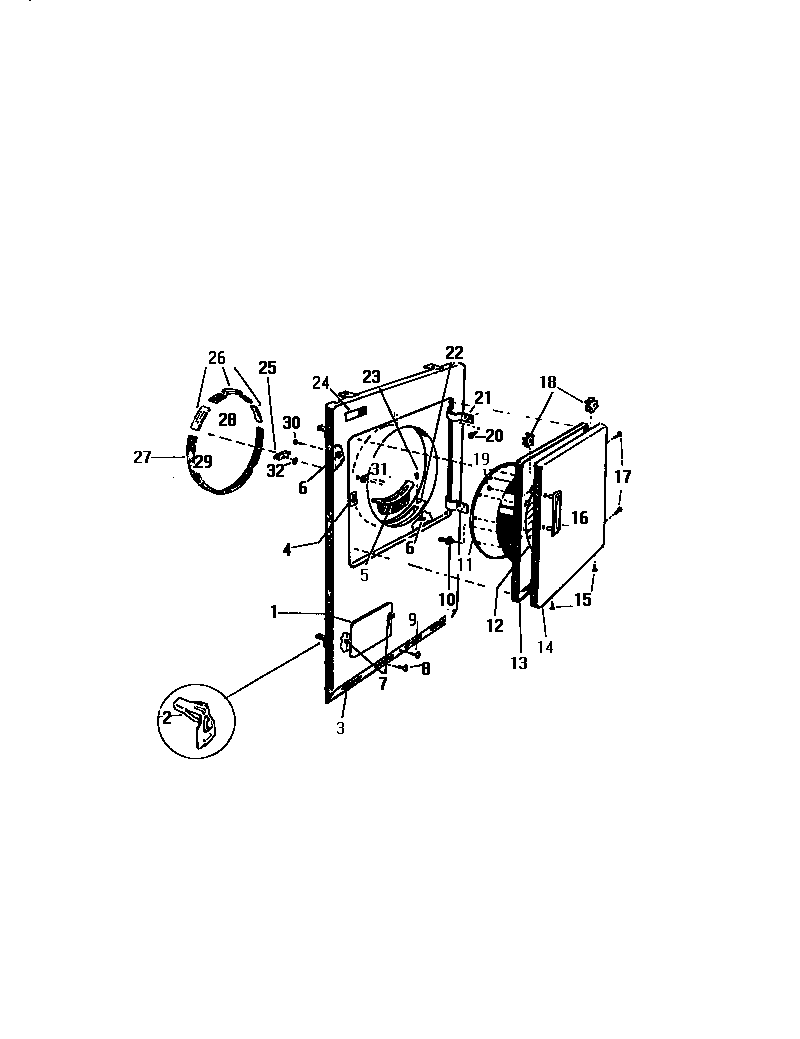

DG640JXH1 03 – FRONT PANEL, DOOR

DG640JXH1 03 – FRONT PANEL, DOOR

Written by

in

DG640JXH1 03 – FRONT PANEL, DOOR

Products

PositionProduct
1ACCESS DOOR, WHEAT
2CLIP (4)
3PANEL FRONT, WHEAT
4WCI Q504551
5WCI Q632621
6WCI Q500255
7SUPPORT
8WCI Q405802
9WCI Q500717
10WCI Q504552
11WCI Q167703
12SHIELD
13PANEL INNER DOOR, WHEAT
14PANEL OUTER DOOR, WHEAT
16WCI Q622791
18WCI Q631591
19WCI Q503952
20WCI Q504773
21WCI Q607301
22FRAME LINT TRAP
23WCI Q403103
24WCI Q604443
25WCI Q622422
26GUIDE KIT
27WCI Q142888
28WCI Q15141
29WCI Q15142
30SCREW (4)
31WCI Q501450
32WCI Q409004
