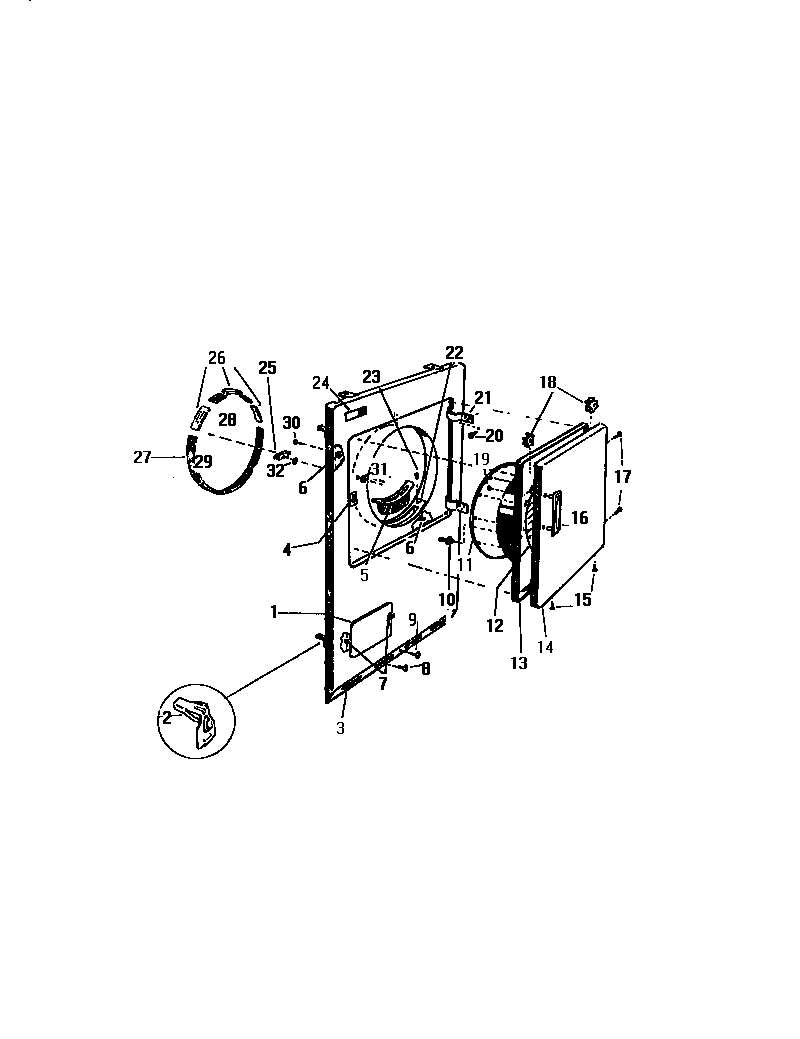

DG640JXV1 03 – FRONT PANEL, DOOR

DG640JXV1 03 – FRONT PANEL, DOOR

Written by

in

DG640JXV1 03 – FRONT PANEL, DOOR

Products

Position	Product
1	ACCESS DOOR
2	CLIP (4)
3	PANEL FRONT
4	WCI Q504551
5	WCI Q632621
6	WCI Q500255
7	SUPPORT
8	WCI Q405802
9	WCI Q500717
10	WCI Q504552
11	WCI Q167703
12	SHIELD
13	PANEL INNER DOOR
14	PANEL OUTER DOOR
16	WCI Q622791
18	WCI Q631591
19	WCI Q503952
20	WCI Q504773
21	WCI Q607301
22	FRAME LINT TRAP
23	WCI Q403103
24	WCI Q604443
25	WCI Q622422
26	GUIDE KIT
27	WCI Q142888
28	WCI Q15141
29	WCI Q15142
30	SCREW (4)
31	WCI Q501450
32	WCI Q409004
