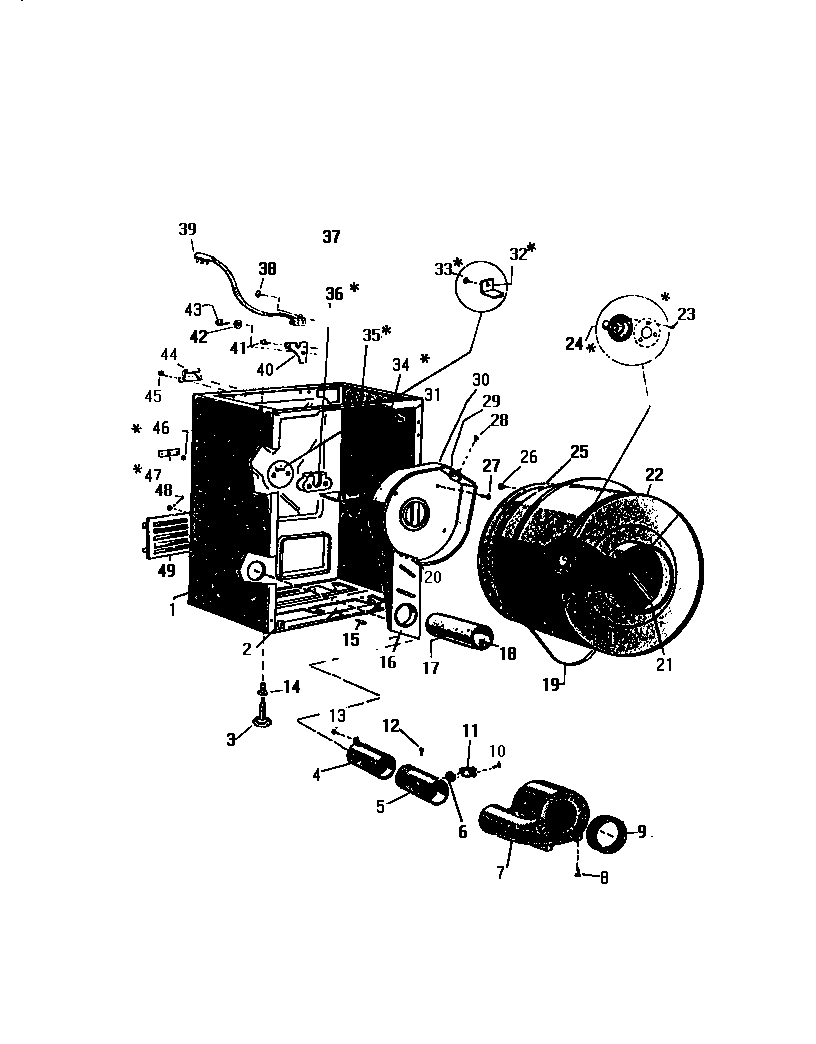

DG640JXV1 04 – CABINET, DRUM, HEATER HOUSING

Products

Position	Product
1	BODY
2	WCI Q505011
3	WCI Q504971
4	WCI Q182901
5	DUCT, THERM.
6	WCI Q606131
7	WCI Q171281
8	SCREW (4)
9	WCI Q19462
11	WCI Q634402
12	WCI Q5050553
14	GROMMET ( FOOT BOLT )
15	TOGGLE KIT
16	WCI Q116393
17	TUBE, BURNER
19	WCI Q63812
20	SCREW (4)
21	WCI Q615892
21A	WCI Q615891
21B	WCI Q501592
22	SPINNER, BASKET
23	SCREW
24	SHAFT
25	WCI Q165773
26	SCREW (3)
28	SCREW
29	THERMOSTAT, HI LIMIT
30	HEATER HOUSING
32	BRACKET
34	SCREW
35	BRACKET
36	BEARING
37	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
38	WCI Q435152
39	WCI Q612664
40	WCI Q167097
41	WCI Q403102
42	WCI Q500411
43	WCI Q500665
44	WCI Q155561
45	WCI Q505564
46	BALL
47	SPEED NUT STRIP
48	WCI Q506553
49	WCI Q94811
