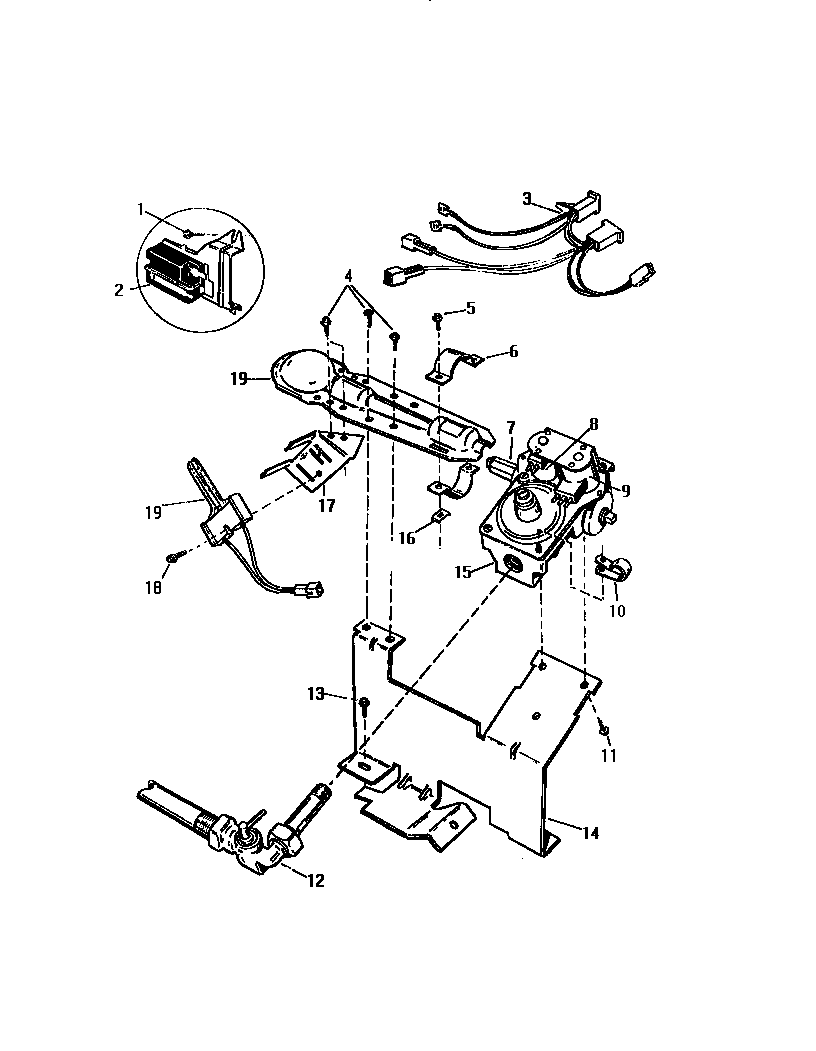

DG640JXV1 05 – GAS VALVE BURNER ASSY., SENSOR

DG640JXV1 05 – GAS VALVE BURNER ASSY., SENSOR

Written by

in

DG640JXV1 05 – GAS VALVE BURNER ASSY., SENSOR

Products

Position	Product
1	SCREW (4)
2	SENSOR
3	WCI Q631782
4	WCI Q414001
5	SCREW (4)
6	WCI Q116032
7A	ORIFICES, MFD GAS
7	ORIFICES, NATURAL GAS
7B	ORIFICES, LP GAS KIT
8	WCI Q622602
9	WCI Q622601
10	WCI Q622604
11	WCI Q505564
12	WCI Q600621
13	WCI Q500437
14	WCI Q631531
15	WCI Q630822
16	SPEEDNUT (2)
17	BRACKET IGNITER
18	WCI Q505556
19	IGNITER
