DG640JXW1 02 – CONSOLE, CONTROLS, TOP PANEL – Aparts

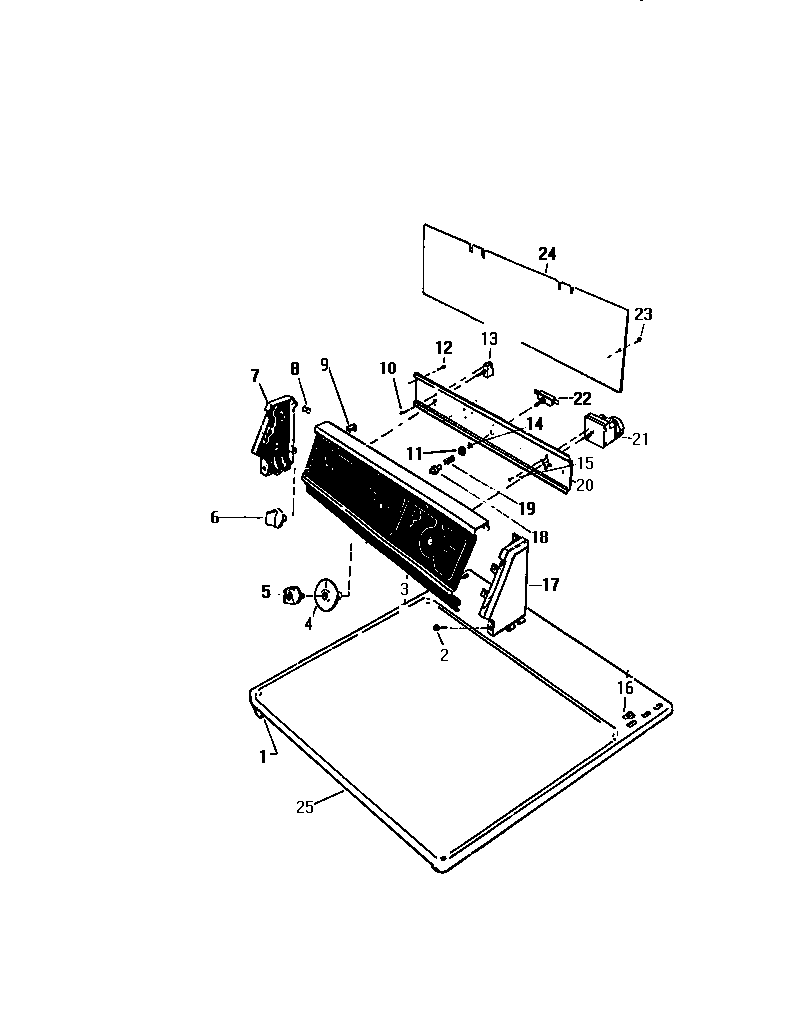

DG640JXW1 02 – CONSOLE, CONTROLS, TOP PANEL

Products

Position	Product
1	SPRING CATCH
2	WCI Q501533
3	WCI Q635041
4	WCI Q617641
5	KNOB TIMER
6	WCI Q633726
7	WCI Q616731
8	SPEEDNUT (8)
9	WCI Q504803
10	SCREW
11	WCI Q501450
12	SCREW (4)
13	SWITCH, SELECTOR
14	WCI Q409004
15	SCREW (4)
16	WCI Q503065
17	WCI Q616732
18	WCI Q621231
19	WCI Q66793
20	WCI Q616711
21	WCI Q634302
22	START SWITCH
23	SCREW (4)
24	WCI Q616741
25	PANEL, TOP, WHITE
