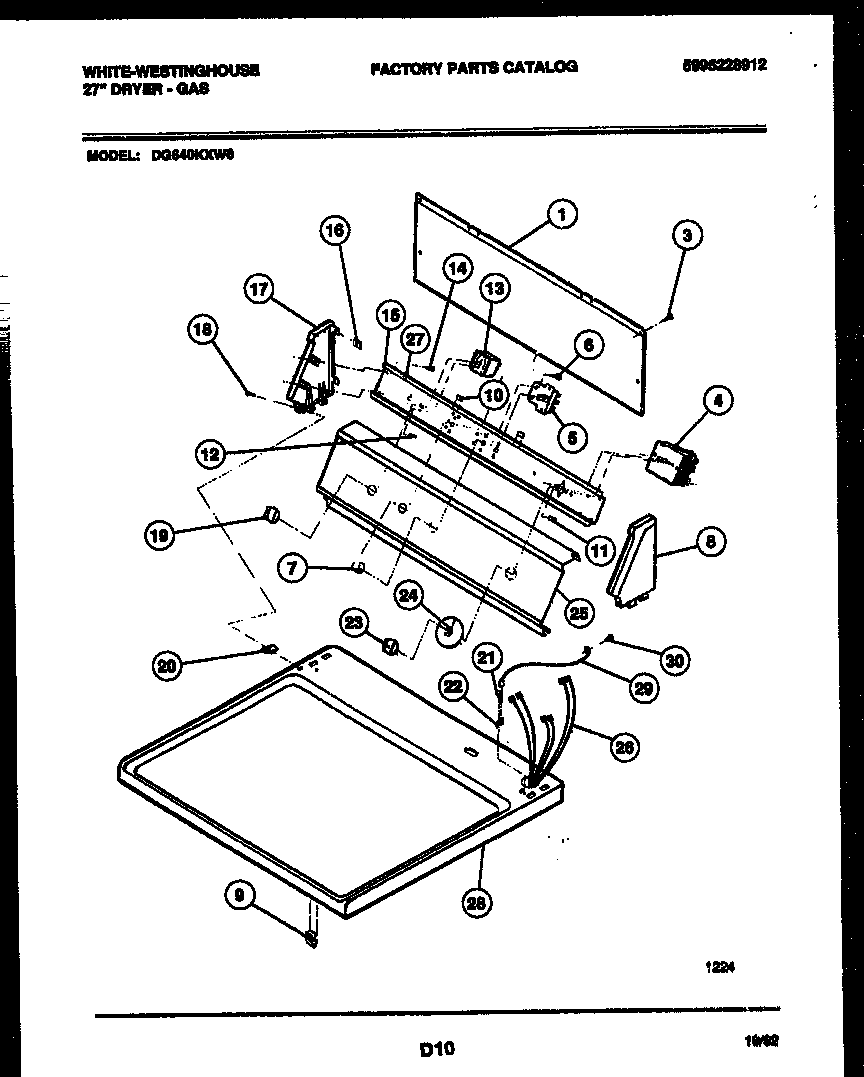

DG640KXD6 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	COVER-BACK
3	SCREW
4	WCI 5300634302
5	SWITCH - START
6	WCI 08001544
7	WCI 3201220
8	WCI 3205840
9	3205821 Frigidaire Clip
10	PAD (2)
11	SCREW (2)
12	WCI 3281101
13	SWITCH-SELECTOR
14	5303015671 Frigidaire Bracket Termination Screw
15	WCI 3205841
16	CLIP (8)
17	WCI 3205842
18	SCREW (2)
19	WCI 5308015435
20	WCI 3281192
21	131243800 Frigidaire Screw
22	WCI 5379171000
23	KNOB-TIMER
24	WCI 08015434
25	WCI 5303269473
26A	5303303590 Frigidaire Dryer 4.0" Cable Tie
26	WCI 131015500
27	WCI 3281200
28	PANEL-TOP ALMD
29	WIRE-GROUND
30	SCREW (2)
