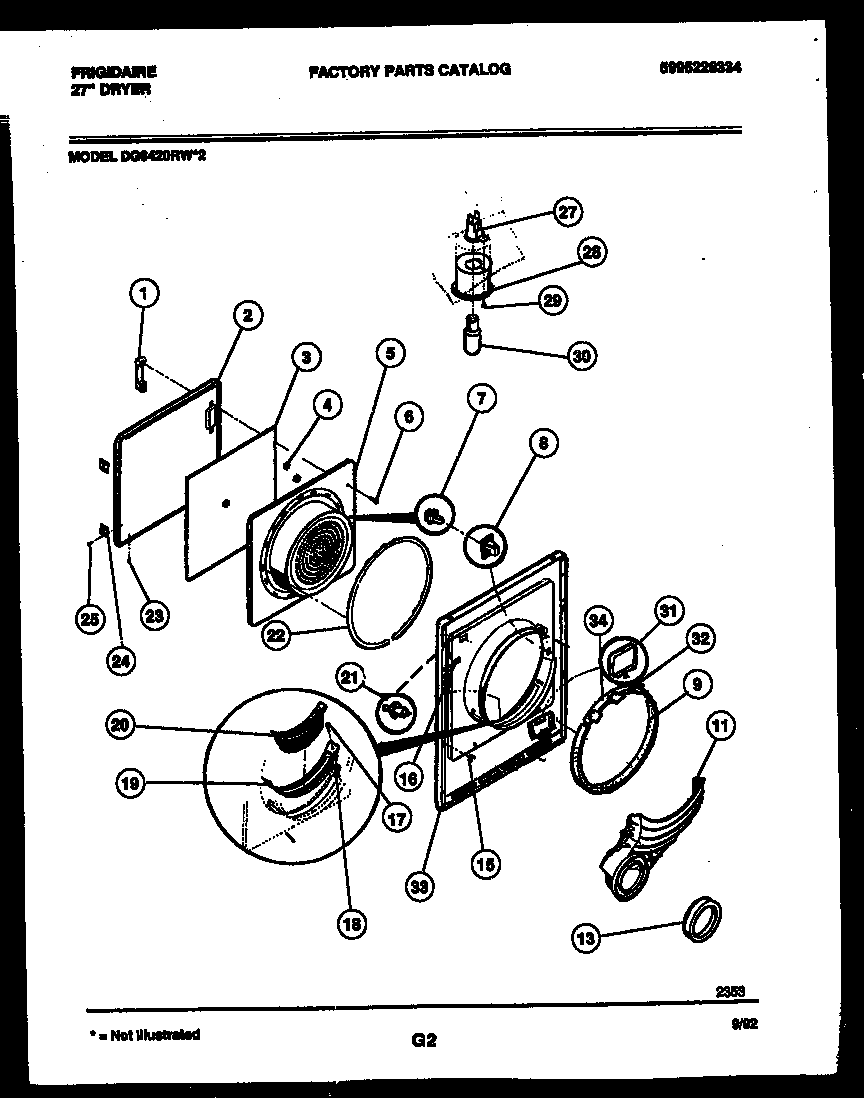

DG6420RW2 03 – DOOR PARTS

Products

Position	Product
1	WCI 5303286643
2	PANEL-O.D. WHITE
3	SHIELD, HEAT
4	WCI 3201205
5	PANEL – ID WHITE
6	WCI 5303281051
7	5303207102 Frigidaire Door Strike
8	131658800 Frigidaire Dryer Door Catch Repair Kit
9	WCI 5303281049
11	WCI 131002500
13	134417000 Frigidaire Seal
15	CLIP GUIDE (4)
16	CLIP
17	131420300 Frigidaire Screw
18	CLIP
20	TRAP-LINT
21	DOOR-SWITCH
22	GASKET, DOOR
24	HINGE, DOOR (2)
25	SCREW (8)
27	WCI 5308015210
28	WCI 5308015259
29	SCREW
30	WCI 5308027430
31	DOOR-ACCESS WHITE
32	5303300265 Frigidaire Oven Screw
33	PANEL-FRONT-WHITE
34	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
