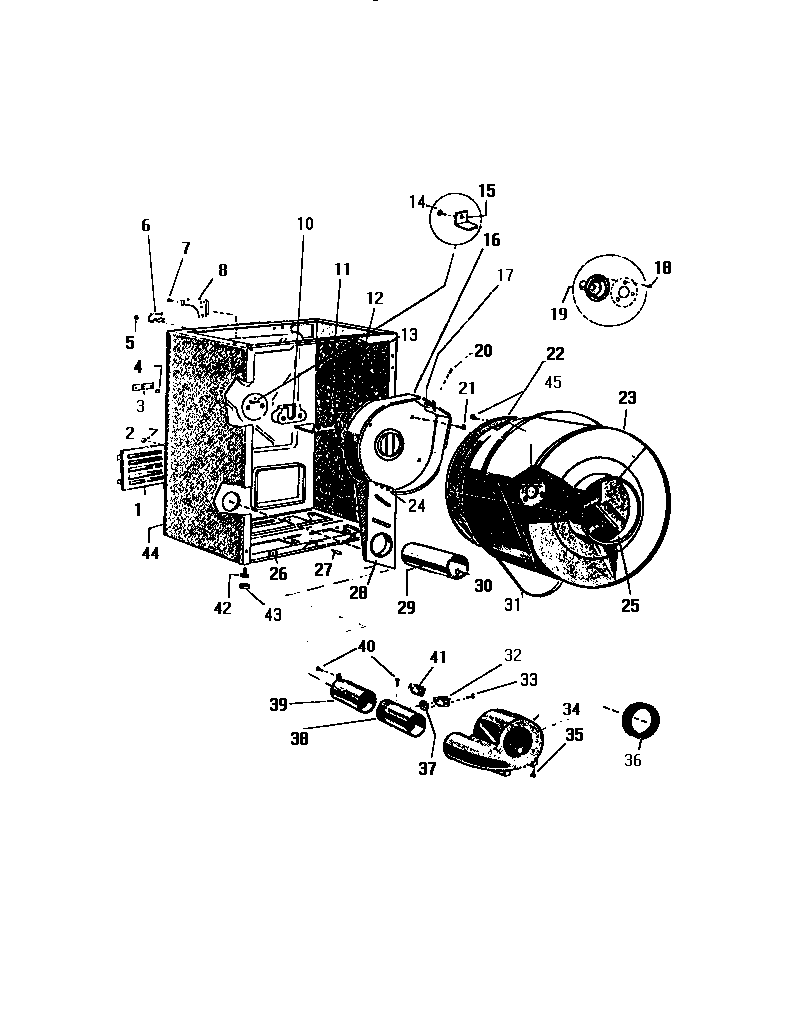

DG650EXD4 04 – DRUM

Products

Position	Product
*94762	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
1	WCI Q94811
3	SPEED NUT STRIP
4	BALL
6	WCI Q155561
7	WCI Q409702
8	WCI Q133282
10	BEARING
11	BRACKET
12	SCREW
15	BRACKET
16	HEATER HOUSING
17	THERMOSTAT, HI LIMIT
18	SCREW
19	SHAFT
22	WCI Q165773
23	SPINNER, BASKET
25B	WCI Q501592
25A	WCI Q615891
25	WCI Q615892
26	WCI Q502956
27	WCI Q504281
28	WCI Q116393
29	TUBE, BURNER
30	WCI Q505564
31	WCI Q63807
32	THERMOSTAT, REGULAR HEAT
33	SCREW
34	WCI Q171281
35	SCREW (4)
36	WCI Q19462
37	WCI Q606131
38	WCI Q603012
39	WCI Q182901
40	SCREW (4)
41	THERMOSTAT, LOW HEAT
42	WCI Q198170
43	WCI Q16971
44	BODY, ALMD
45	SCREW (3)
