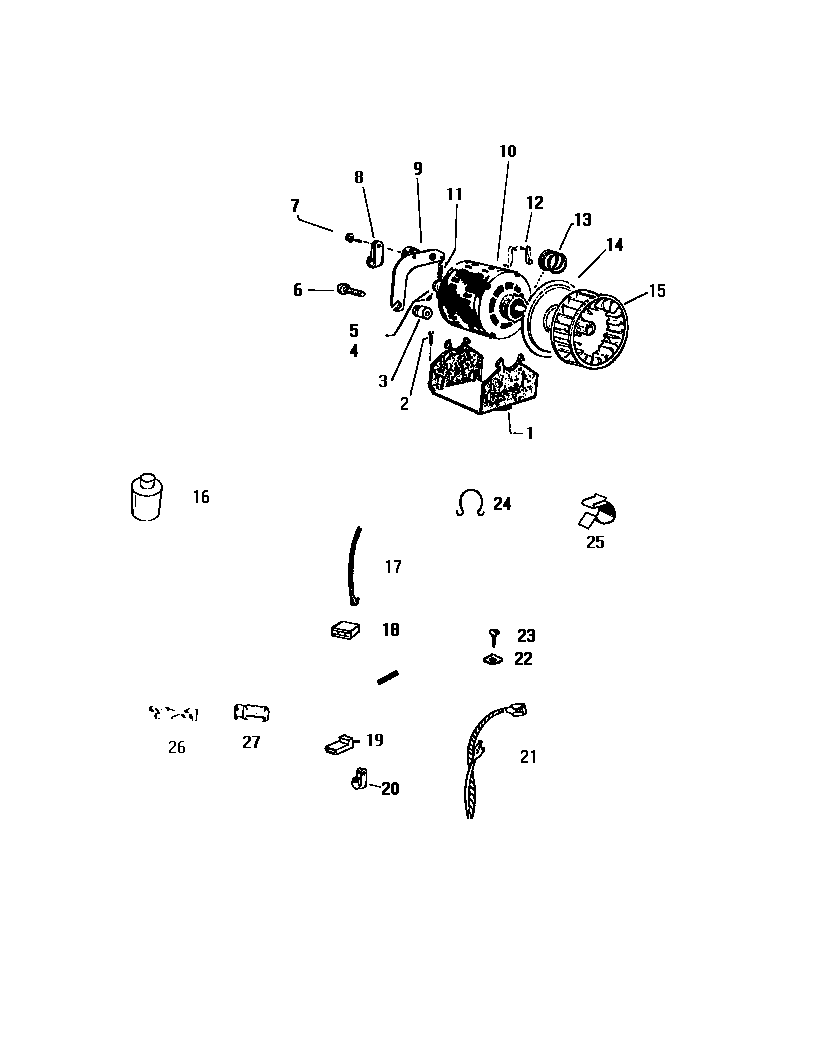

DG650EXF4 07 – MOTOR, MISCELLANEOUS

Products

PositionProduct
*94761SEALING MASTER
*94760WCI 1443982
1WCI Q94874
2SCREW
3WCI Q600179
4SCREW
5PULLEY (SEE NOTE 1)
6WCI Q433401
7WCI Q414002
8CLAMP
9IDLER PULLEY AND BRACKET
10BMOTOR PRODUCT NO., G.E. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
10DSTART SWITCH FOR Q615921 WW
10ESTART SWITCH FOR Q616401 GE
10A(MOTOR PRODUCT NO., W.W.) MOTOR SERVICE REPLACEMENT IS P/N
10MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
10FSTART SWITCH FOR Q616391 EMER.
10CMOTOR PRODUCT NO. Q616391, EMER. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
11SPRING
12WCI Q62206
13WCI Q94715
14WCI Q94948
15WCI Q615901
16TOUCH-UP PAINT, 1 OUNCE, COFFEE
17CORD, SERVICE
18WCI Q63137
19RECEPTACLE
20CLAMP
21WCI Q631171
22WCI Q500411
23WCI Q500665
24WCI Q62196
25WCI Q502207
26BRECEPTACLE, STRAIGHT, 5/16“ BLADE TERMINAL
26RECEPTACLE, STRAIGHT, 1/4“ BLADE TERMINAL
26ARECEPTACLE, STRAIGHT, 3/16“ BLADE TERMINAL
27RECEPTACLE, FLAG, 1/4“ BLADE TERMINAL
