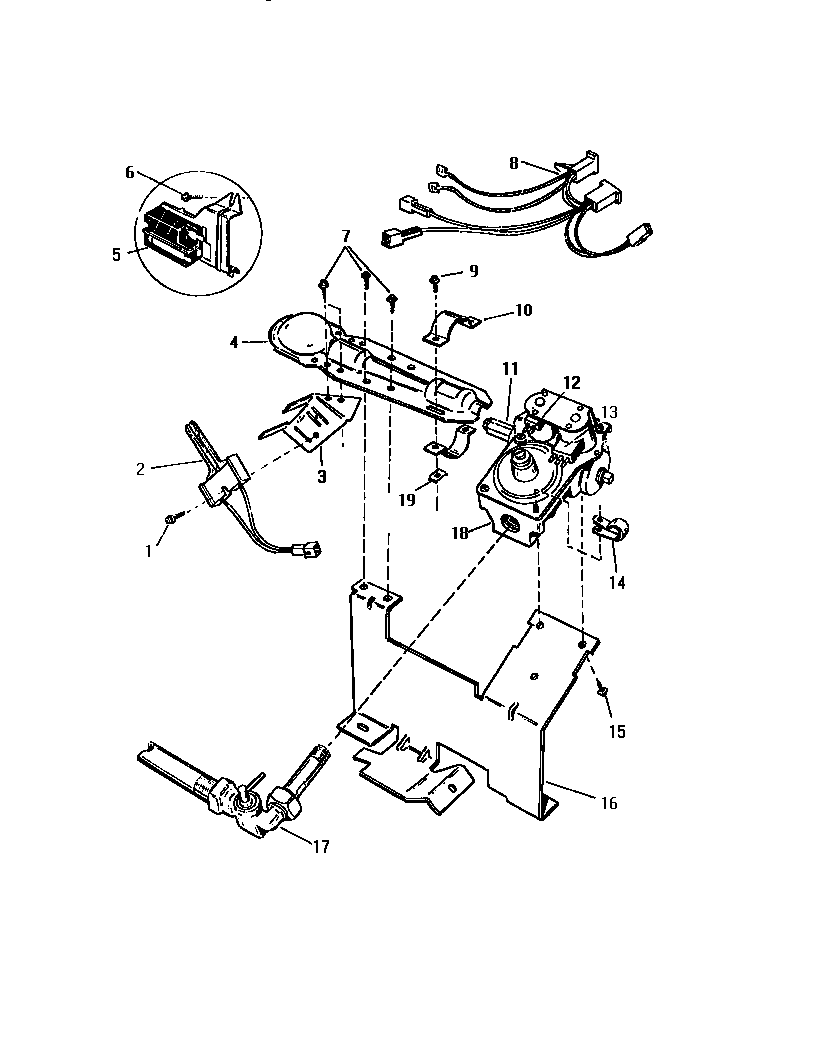

DG650EXH5 06 – GAS VALVE BURNER ASSY., SENSOR

DG650EXH5 06 – GAS VALVE BURNER ASSY., SENSOR

Written by

in

DG650EXH5 06 – GAS VALVE BURNER ASSY., SENSOR

Products

PositionProduct
1WCI Q505556
2IGNITER
3BRACKET IGNITER
4WCI Q125516
5SENSOR
6SCREW (4)
7WCI Q414001
8WCI Q631781
9SCREW (4)
10WCI Q116032
11BORIFICES, LP GAS KIT
11AORIFICES, MFD GAS
11ORIFICES, NATURAL GAS
12WCI Q622602
13WCI Q622601
14WCI Q622604
15WCI Q505564
16WCI Q631531
17WCI Q600621
18WCI Q630822
19SPEEDNUT (2)
