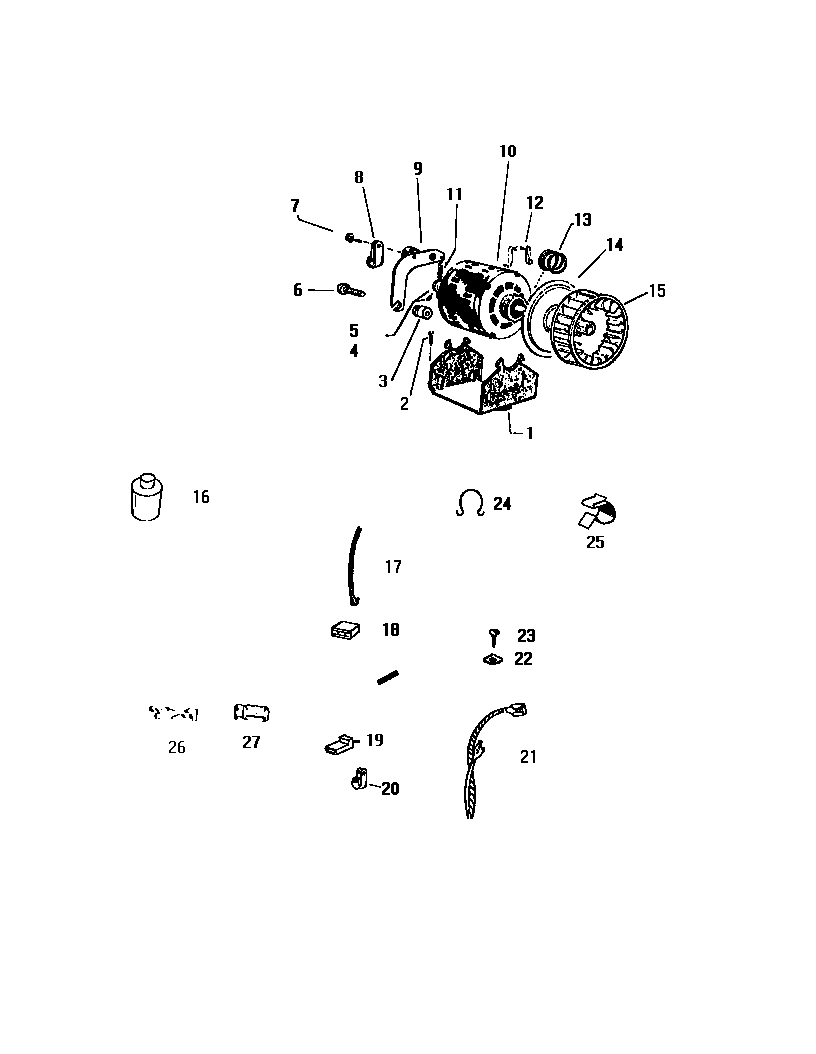

DG650EXH5 07 – MOTOR, MISCELLANEOUS

Products

PositionProduct
*94761SEALING MASTER
*94760WCI 1443982
1WCI Q94874
2SCREW
3WCI Q600179
4SCREW
5PULLEY (SEE NOTE 1)
6WCI Q433401
7WCI Q414002
8CLAMP
9IDLER PULLEY AND BRACKET
10A(MOTOR PRODUCT NO., W.W.) MOTOR SERVICE REPLACEMENT IS P/N
10BMOTOR PRODUCT NO., G.E. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
10CMOTOR PRODUCT NO. Q616391, EMER. (MOTOR SERVICE REPLACEMENT, P/N Q603185)
10FSTART SWITCH FOR Q616391 EMER.
10MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1
10DSTART SWITCH FOR Q615921 WW
10ESTART SWITCH FOR Q616401 GE
11SPRING
12WCI Q62206
13WCI Q94715
14WCI Q94948
15WCI Q615901
16WCI Q171157
17CORD, SERVICE
18WCI Q63137
19RECEPTACLE
20CLAMP
21WCI Q632113
22WCI Q500411
23WCI Q500665
24WCI Q62196
25WCI Q502207
26ARECEPTACLE, STRAIGHT, 3/16“ BLADE TERMINAL
26RECEPTACLE, STRAIGHT, 1/4“ BLADE TERMINAL
26BRECEPTACLE, STRAIGHT, 5/16“ BLADE TERMINAL
27RECEPTACLE, FLAG, 1/4“ BLADE TERMINAL
