DG650EXV1 02 – CONSOLE, CONTROLS, TOP PANEL

DG650EXV1 02 – CONSOLE, CONTROLS, TOP PANEL

Written by

in

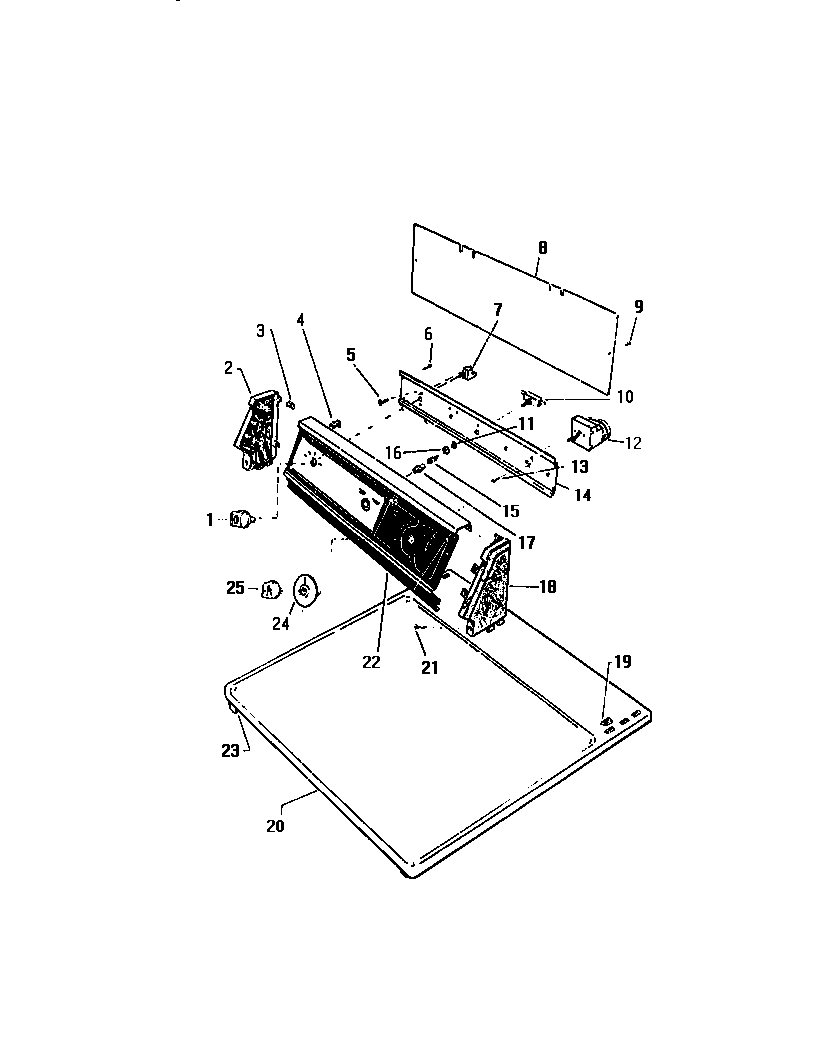

DG650EXV1 02 – CONSOLE, CONTROLS, TOP PANEL

Products

Position	Product
2	WCI Q616731
3	SPEEDNUT (8)
4	WCI Q504801
5	SCREW
6	SCREW (4)
7	SWITCH, SELEC.
8	WCI Q616741
9	SCREW (4)
10	START SWITCH
11	WCI Q409004
12	WCI Q630114
13	SCREW (4)
14	WCI Q616711
15	WCI Q66793
16	WCI Q501450
17	WCI Q621231
18	WCI Q616732
19	WCI Q503065
20	PANEL TOP, FR AV
21	WCI Q504533
22	WCI Q631181
23	SPRING CATCH
24	WCI Q617641
25	KNOB TIMER
