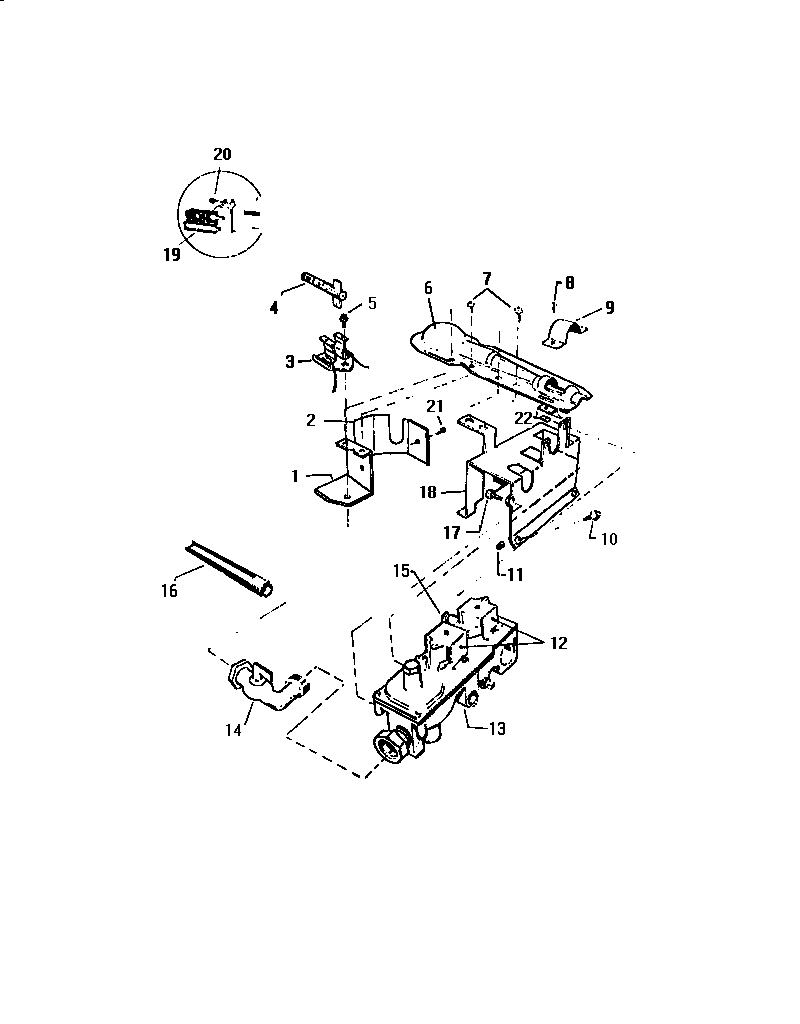

DG650EXV1 05 – GAS VALVE BURNER ASSEMBLY

DG650EXV1 05 – GAS VALVE BURNER ASSEMBLY

Written by

in

DG650EXV1 05 – GAS VALVE BURNER ASSEMBLY

Products

Position	Product
1	WCI Q600601
2	WCI Q19871
3	SPRING ASSY IGNITER
4	IGNITER
5	WCI Q19761
6	WCI Q125516
8	SCREW (4)
9	WCI Q116032
10	WCI Q505564
11	WCI Q500260
12	WCI Q171854
13	WCI Q171513
14	WCI Q600621
15	ORIFICE, NAT GAS
15A	WCI Q600776
15B	WCI Q198155
17	WCI Q414001
18	WCI Q600631
19	SENSOR
20	SCREW (4)
21	WCI Q419401
22	SPEEDNUT (2)
