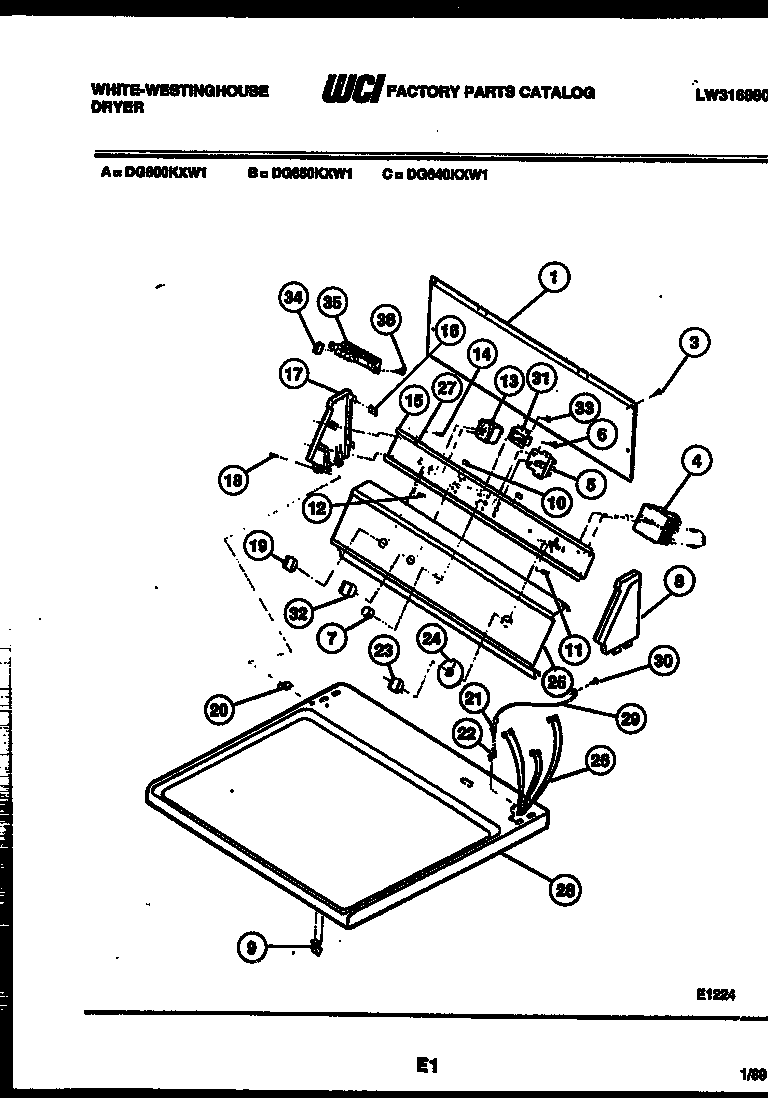

DG650KXW1 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	COVER-BACK
3	SCREW
4	WCI 3201218
5	SWITCH - START
6	WCI 08001544
7	WCI 3201221
8	WCI 3281191
9	SPRING CATCH
10	PAD
11	SCREW (2)
12	WCI 3281101
14	SCREW (2)
15	BRACKET-MOUNTING
16	WCI F140666-000
17	WCI 3281189
18	SCREW (2)
20	WCI 3281192
21	131243800 Frigidaire Screw
22	WCI F079171-000
23	KNOB-TIMER
24	WCI 08015434
25	WCI Q000634071
26	WCI 3201227
26A	5303303590 Frigidaire Dryer 4.0" Cable Tie
27	CLIP-GROUND
28	PANEL-TOP ALMD
28	PANEL-TOP WHITE
28	PANEL-TOP WHEAT
29	WIRE-GROUND
30	SCREW (2)
31	CYCLE SIGNAL
32	WCI Q000633722
34	WCI Q000148996
35	SWITCH-P.B.
36	SCREW (2)
