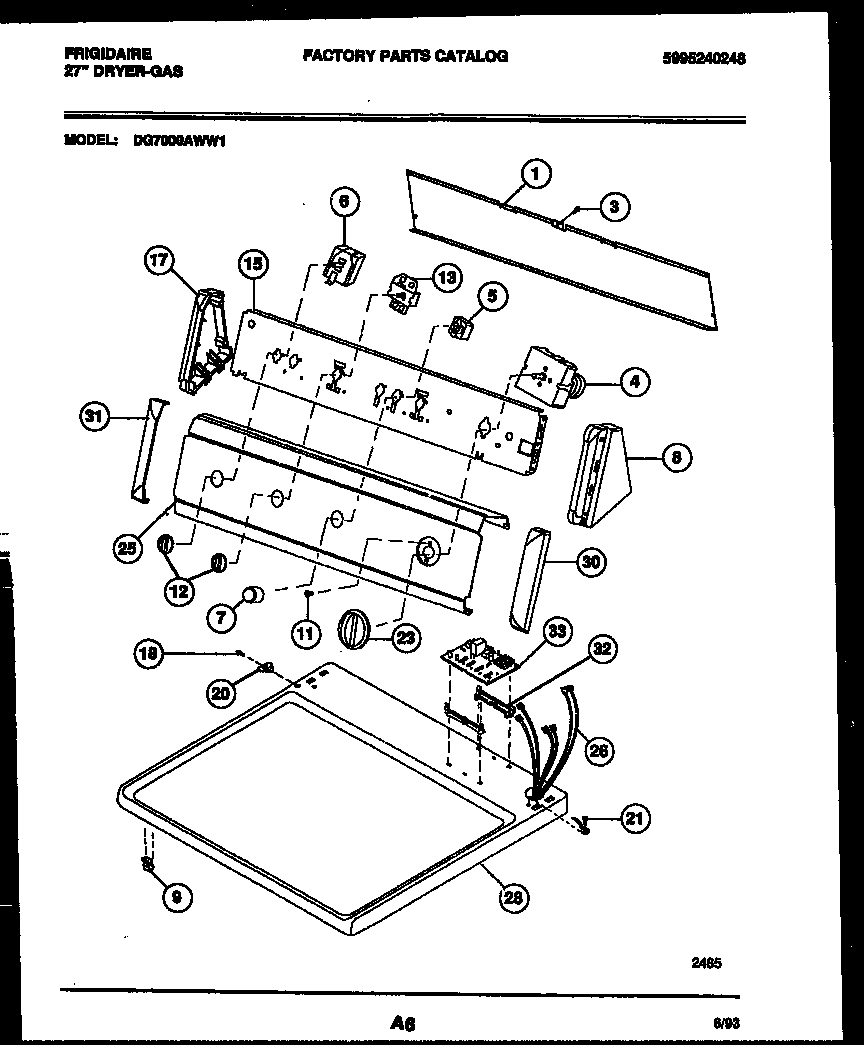

DG7000AWW1 04 – CONSOLE AND CONTROL PARTS

DG7000AWW1 04 – CONSOLE AND CONTROL PARTS

Written by

in

DG7000AWW1 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1BACKSHEET
3131205100 Frigidaire Screw
4WCI 131111300
5WCI 131048000
6WCI 131048100
7WCI 131141301
8END CAP-R.H.-WHITE
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
12131858004 Frigidaire Control Knob, White
13AWCI 3201341
13WCI 131048300
15BRACKET CONTROLS
17END CAP-L.H.-WHITE
18WCI 3205820
20CLIP
21131243800 Frigidaire Screw
23134011703 Frigidaire Dryer Timer Knob
25WCI 131176100
26WCI 131181000
28PANEL-TOP-WHITE
30COVER-CAP-RH-WHITE
31COVER-CAP-LH-WHITE
32WCI 131089800
33WCI 131167400
