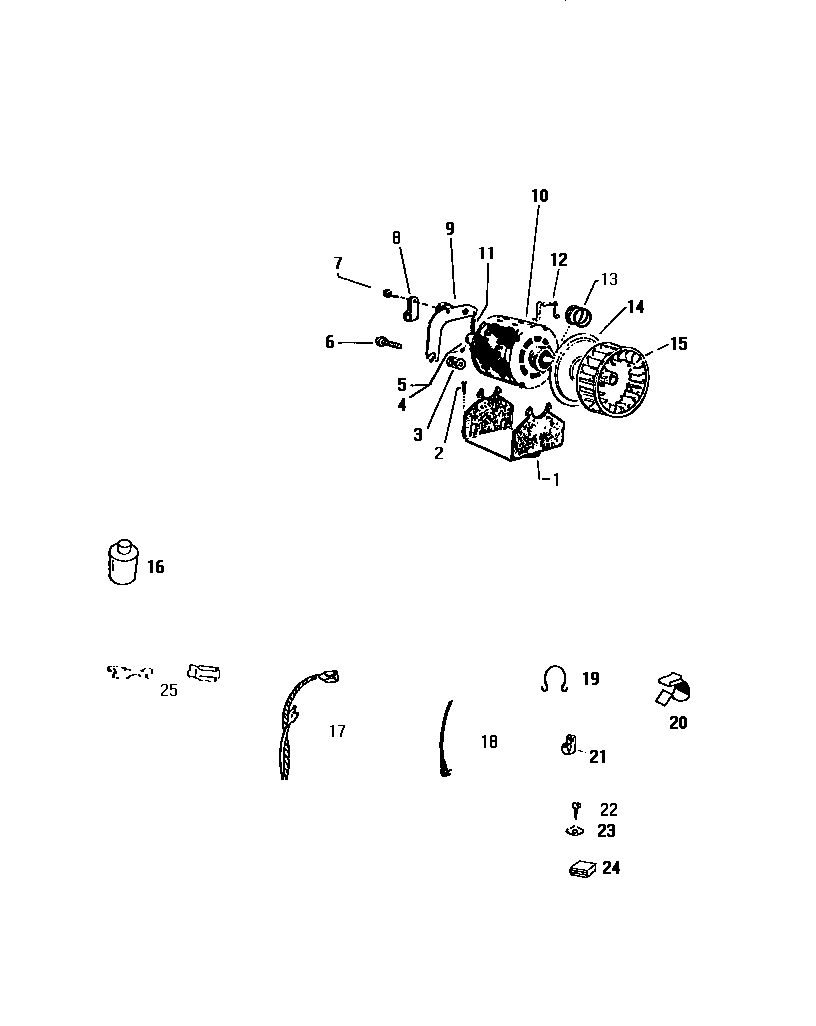

DG700EXD2 07 – MOTOR, MISCELLANEOUSadmin2025-04-26T08:53:30+00:00DG700EXD2 07 – MOTOR, MISCELLANEOUS
Products
| Position | Product |
|---|
| *81881 | WCI 1443982 |
| *81880 | SEALING MASTER |
| 1 | WCI Q94874 |
| 2 | SCREW |
| 3 | WCI Q600179 |
| 4 | SCREW |
| 5 | PULLEY (SEE NOTE 1) |
| 6 | WCI Q433401 |
| 7 | WCI Q414002 |
| 8 | CLAMP |
| 9 | IDLER PULLEY AND BRACKET |
| 10A | START SWITCH FOR Q615921 WW |
| 10C | START SWITCH FOR Q616401 GE |
| 10D | MOTOR REPLACEMENT (EMER. P/N Q616391) SEE NOTE 1 |
| 10E | START SWITCH FOR Q616391 EMER. |
| 11 | SPRING |
| 12 | WCI Q62206 |
| 13 | WCI Q94715 |
| 14 | WCI Q94943 |
| 15 | WCI Q615901 |
| 16 | TOUCH-UP PAINT, 1 OUNCE, ALMOND |
| 17 | WCI Q618631 |
| 18 | CORD, SERVICE |
| 19 | WCI Q62196 |
| 20 | WCI Q502207 |
| 21 | CLAMP |
| 22 | WCI Q500665 |
| 23 | WCI Q500411 |
| 24 | WCI Q63137 |
| 25G | WCI Q310296 |
| 25F | RECEPTACLE, FLAG, 1/4`` BLADE TERMINAL |
| 25D | RECEPTACLE, STRAIGHT, 5/16`` BLADE TERMINAL |
| 25C | RECEPTACLE, STRAIGHT, 1/4`` BLADE TERMINAL (PKG. OF 12) |
| 25B | RECEPTACLE, STRAIGHT, 1/4`` BLADE TERMINAL |
| 25A | RECEPTACLE, STRAIGHT, 3/16`` BLADE TERMINAL (PKG. OF 12) |
| 25 | RECEPTACLE, STRAIGHT, 3/16`` BLADE TERMINAL |
| 25E | WCI Q310297 |
