DG700EXD5 06 – GAS VALVE BURNER ASSY., SENSOR

DG700EXD5 06 – GAS VALVE BURNER ASSY., SENSOR

Written by

in

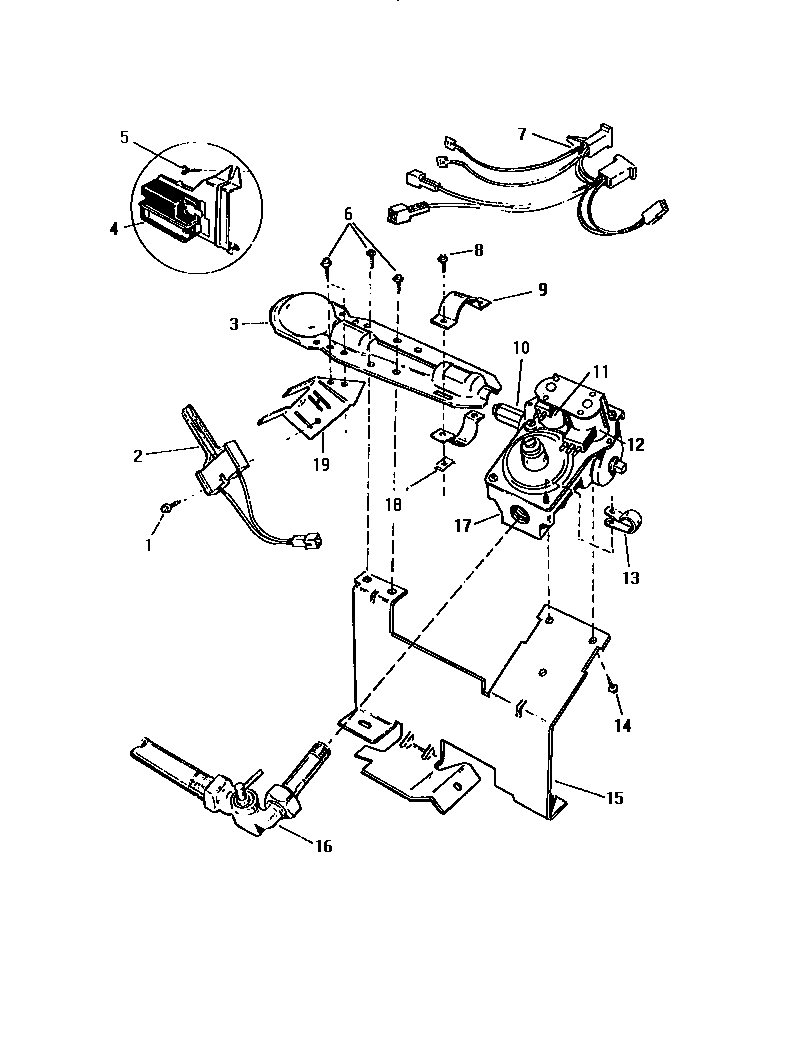

DG700EXD5 06 – GAS VALVE BURNER ASSY., SENSOR

Products

PositionProduct
1WCI Q505556
2IGNITER
3WCI Q125516
4SENSOR
5SCREW (4)
6WCI Q414001
7WCI Q631781
8SCREW (4)
9WCI Q116032
10BORIFICES, LP GAS KIT
10AORIFICES, MFD GAS
10ORIFICES, NATURAL GAS
11WCI Q622602
12WCI Q622601
13WCI Q622604
14WCI Q505564
15WCI Q631531
16WCI Q600621
17WCI Q630822
18SPEEDNUT (2)
19BRACKET IGNITER
