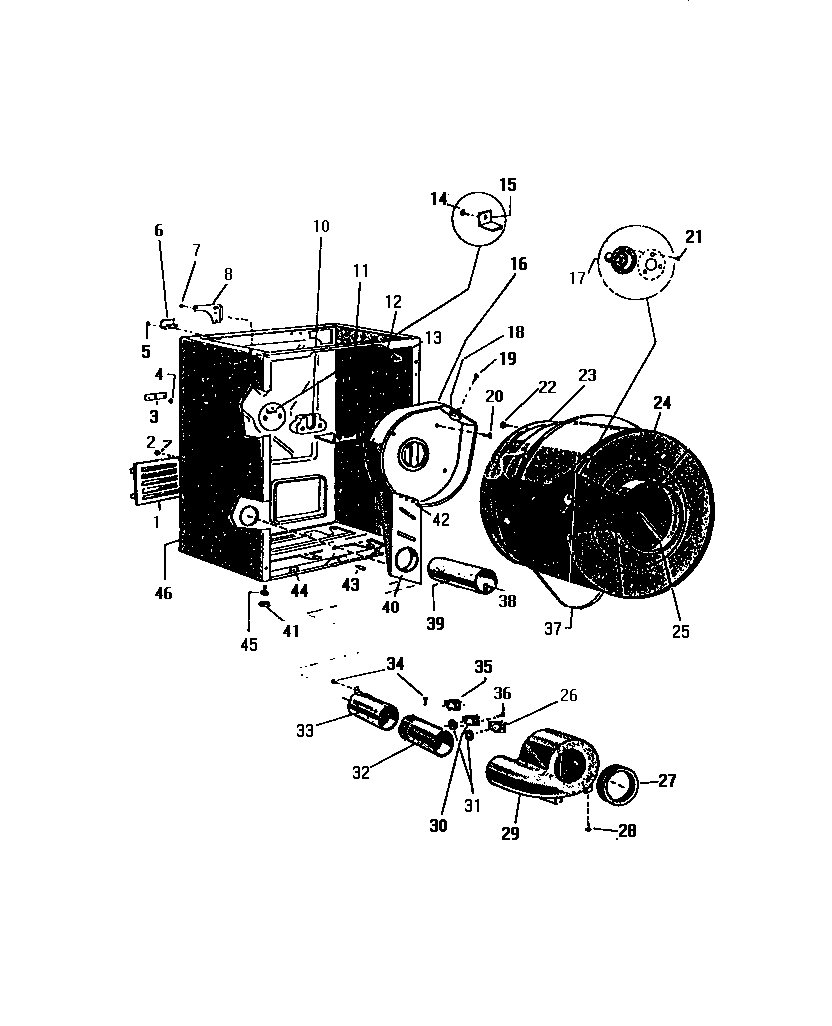

DG700EXF1 04 – CABINET, DRUM, HEATER HOUSING

DG700EXF1 04 – CABINET, DRUM, HEATER HOUSING

Written by

in

DG700EXF1 04 – CABINET, DRUM, HEATER HOUSING

Products

Position	Product
*81884	REAR BEARING KIT (INCL. KEY NOS. 3,4,10-12,14,15,17,21)
1	WCI Q94811
3	SPEED NUT STRIP
4	BALL
6	WCI Q155561
7	WCI Q409702
8	WCI Q133282
10	BEARING
11	BRACKET
15	BRACKET
16	HEATER HOUSING
17	SHAFT
18	THERMOSTAT HI-LIMIT
20	SCREW
21	SCREW
22	SCREW (3)
23	WCI Q165773
24	SPINNER, BASKET
25	WCI Q615892
25A	WCI Q615891
25B	WCI Q501592
26	THERMOSTAT, REGULAR HEAT
27	WCI Q19462
28	SCREW (4)
29	WCI Q171281
30	THERMOSTAT, MEDIUM HEAT
31	WCI Q606131
32	THERMOSTAT DUCT
33	WCI Q182901
35	THERMOSTAT, LOW HEAT
36	SCREW
37	WCI Q63807
38	WCI Q505564
39	TUBE, BURNER
40	WCI Q116391
41	WCI Q16971
42	SCREW (4)
43	WCI Q504281
44	WCI Q502956
45	WCI Q198170
46	WCI Q604186
