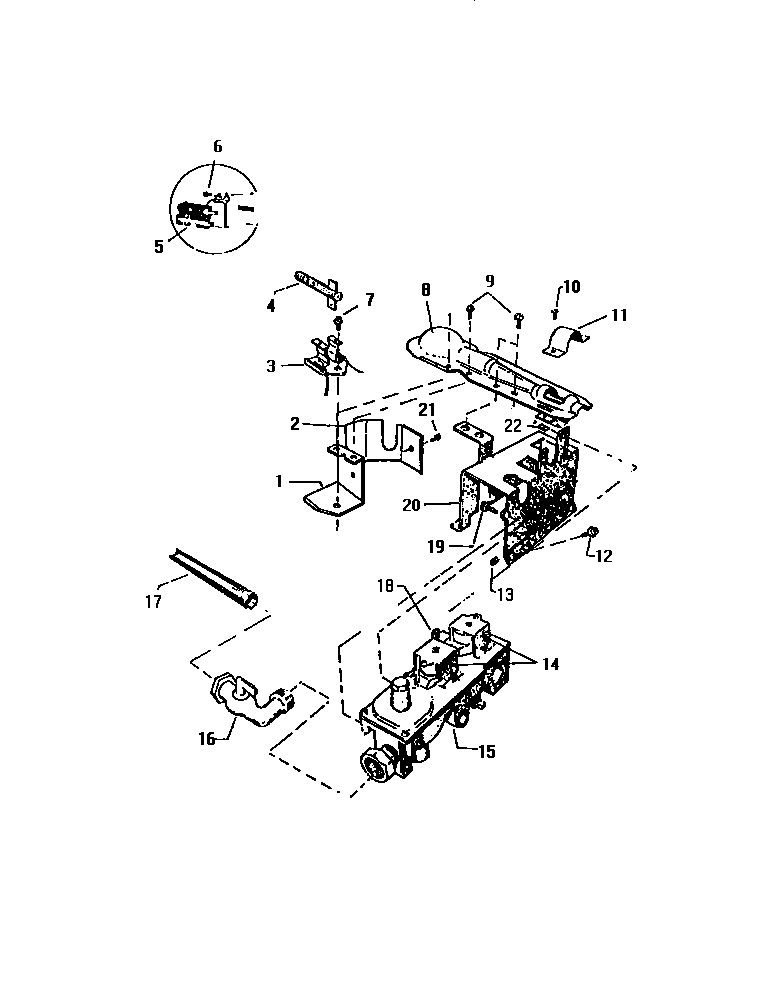

DG700EXF1 05 – GAS VALVE BURNER ASSY., SENSOR

Products

Position	Product
1	WCI Q600601
2	WCI Q19871
3	SPRING ASSY IGNITER
4	IGNITER
5	SENSOR
6	SCREW (4)
7	WCI Q19761
8	WCI Q125516
10	SCREW (4)
11	WCI Q116032
12	WCI Q505564
13	WCI Q500260
14	WCI Q171854
15	WCI Q171513
16	WCI Q600621
18	ORIFICE, NAT GAS
18A	WCI Q600776
18B	WCI Q198155
19	WCI Q414001
20	WCI Q600631
21	WCI Q419401
22	SPEEDNUT (2)
