DG700EXW1 02 – CONSOLE, CONTROLS, TOP PANEL – Aparts

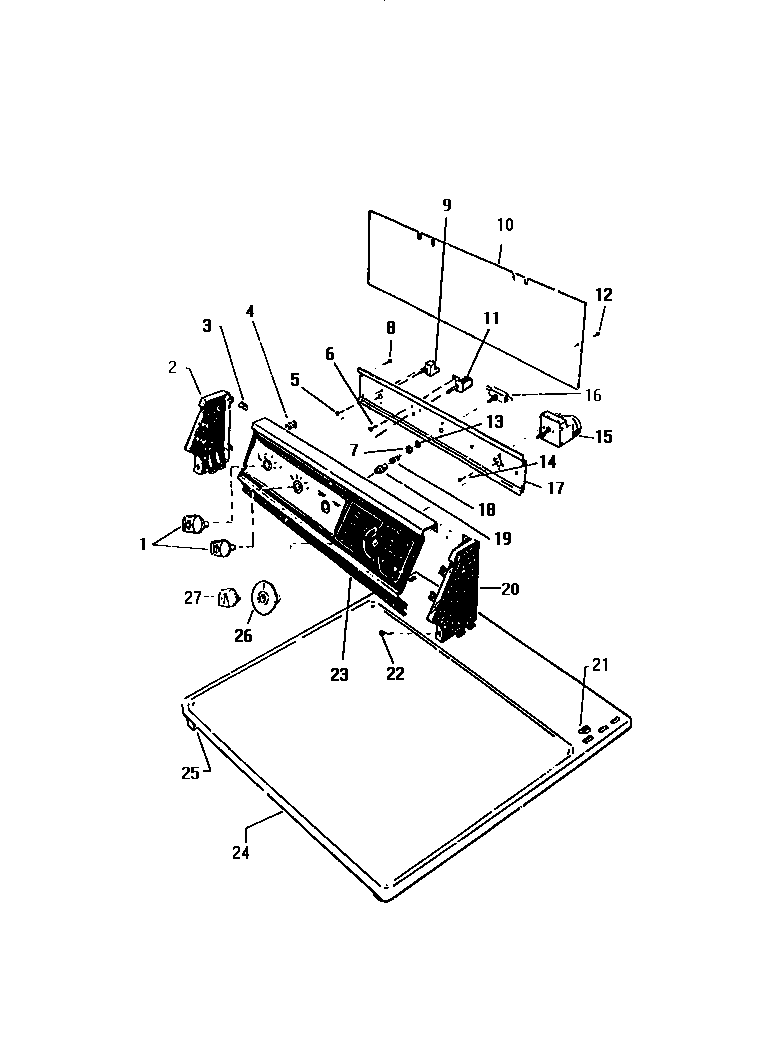

DG700EXW1 02 – CONSOLE, CONTROLS, TOP PANEL

Products

Position	Product
2	WCI Q616731
3	SPEEDNUT (8)
4	WCI Q504801
5	SCREW
7	WCI Q501450
8	SCREW (4)
9	SWITCH, TEMPERATURE
10	WCI Q616741
11	WCI Q152914
12	SCREW (4)
13	WCI Q409004
14	SCREW (4)
15	WCI Q617671
16	START SWITCH
17	WCI Q616711
18	WCI Q66793
19	WCI Q621231
20	WCI Q616732
21	WCI Q503065
22	WCI Q504533
23	WCI Q616861
24	PANEL, TOP, WHITE
25	SPRING CATCH
26	WCI Q617641
27	KNOB TIMER
