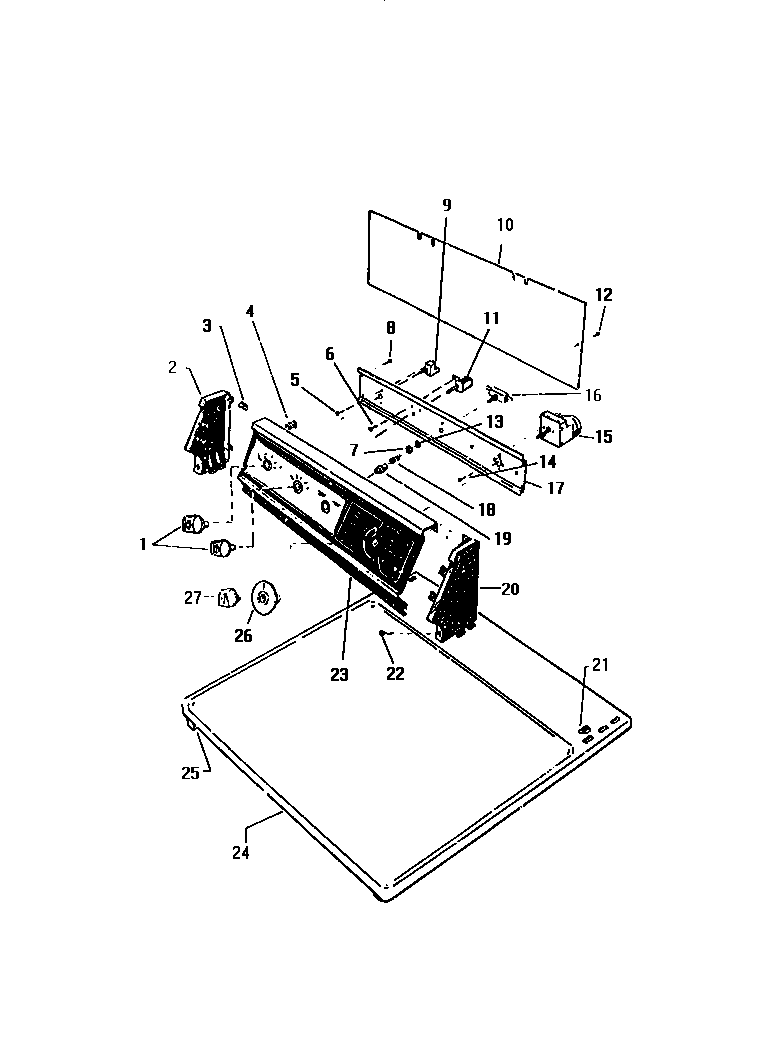

DG700EXW5 02 – CONSOLE, CONTROLS, TOP PANEL

Products

PositionProduct
2WCI Q616731
3SPEEDNUT (8)
4WCI Q504803
5SCREW
7WCI Q501450
8SCREW (4)
9SWITCH, TEMPERATURE
10WCI Q616741
11WCI Q152914
12SCREW (4)
13WCI Q409004
14SCREW (4)
15WCI Q630116
16START SWITCH
17WCI Q616711
18WCI Q66793
19WCI Q621231
20WCI Q616732
21WCI Q503065
22WCI Q504533
23WCI Q616861
24PANEL, TOP, WHITE
25SPRING CATCH
26WCI Q617641
27KNOB TIMER
