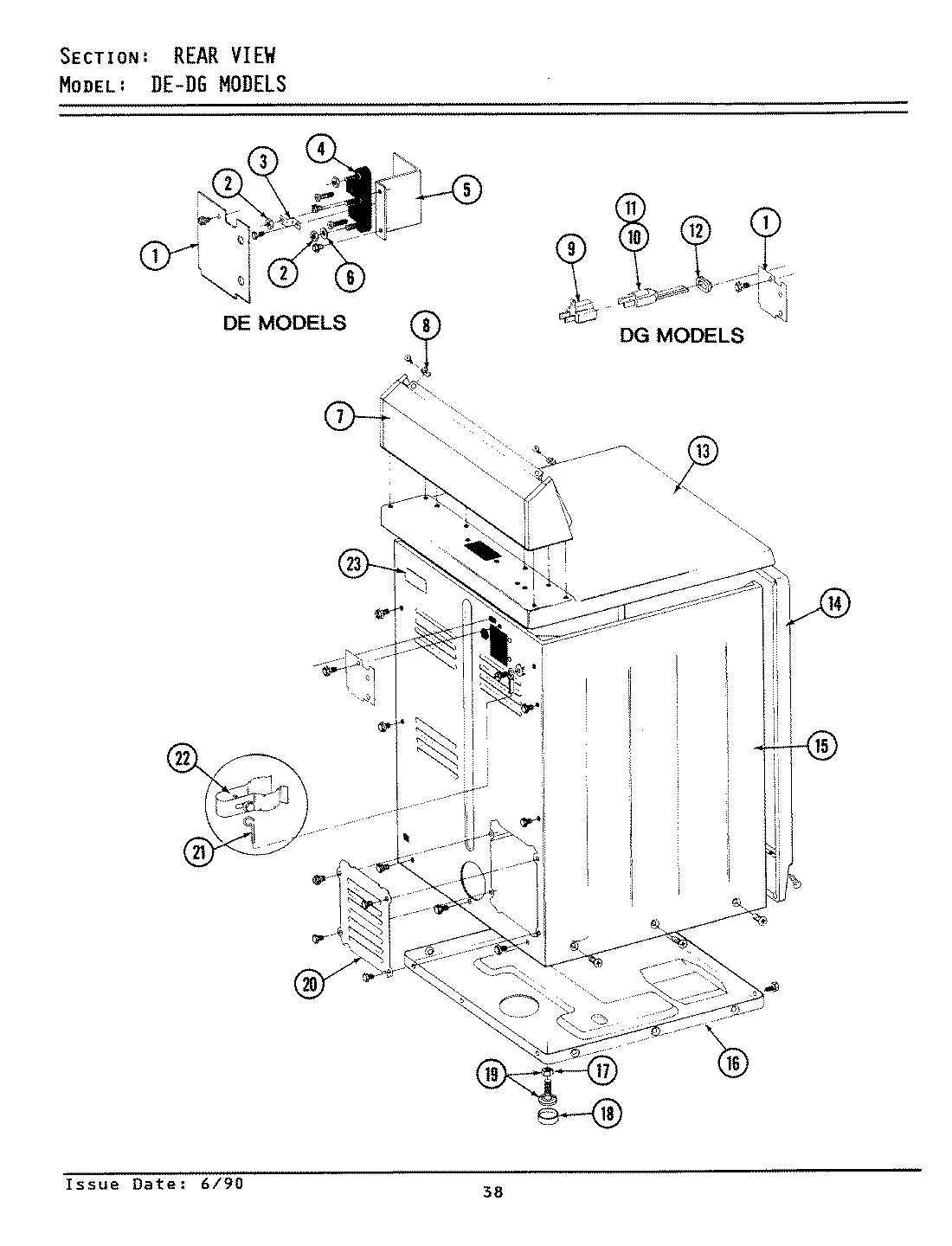

DG7400 08 – REAR VIEW
Written by
in
DG7400 08 – REAR VIEW
Products
Position
Product
1
MAY Y312905
7
MAY Y305193
8
MAY 215075
9
MAY Y201808
10
MAY 302521
12
GROMMET
13
TOP COVER ASSY. (WHT)
14
MAY Y307998
15
MAY 307124
15
MAY Y313561
15
MAY Y310632
16
MAY Y303361
17
WP62739 Whirlpool Nut
18
WPY314137 Whirlpool Rubber Foot
19
W10176519 Whirlpool Leveling Feet
20
MAY Y313559
20
MAY Y312951
20
WP90767 Whirlpool Screw
21
WP311155 Whirlpool Wire Assembly
22
MAY 301548
22
MAY 313122
23
INSTRUCTION LABEL
←
